B&W CCM663RD In-Ceiling Spk - In-ceiling Speakers
|
|
RD stands for Reduced Depth, signifying that this model will fit into tighter spaces than its parent model, CCM663.
Price:
NZ$ 1,198.99 including GST
NZ$ 1,042.60 excluding GST
or four payments of $299.75
with
Learn More

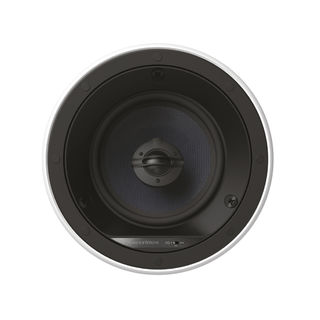

B&W CCM663RD
Information
A shallower cone and a redesign of the easy-fit QuickDogs™ frame reduce this speaker’s depth to a very slim 92mm, while retaining everything that makes the CCM663 such a great in-ceiling speaker.
The dark Kevlar® cone of the bass/mid driver delivers a clean, detailed response, and combines with the pivoting aluminium tweeter for adjustable off-axis treble and three-position EQ, to make an incredibly versatile custom speaker.
If preferred, the supplied round grille can be replaced with an optional square CCM663 grille.
Specifications
| Description | 2-way in-ceiling system |
| Drive Units | 1x Ø25mm (1 in) Nautilus™ swirl loaded aluminium dome tweeter 1x Ø150mm (6 in) blue Kevlar® cone bass/midrange |
| Frequency range (-6dB) | 35Hz – 50kHz |
| Recommended Amplifier Power | 25W – 100W |
| Sensitivity | 86dB (2.83V, 1m) |
| Nominal Impedance | 8Ω (4.8Ω minimum) |
| Frame | Ø240mm (9.4 in) |
| Cut-out | Ø202mm (8 in) |
| Depth behind surface | 92mm (3.6 in) |
| Protrusion | 7mm (0.3 in) |
| Net weight | 2.3kg (5 lb) |
| Pre-mount Kit | PMK C6 |
| Back Box |
BB6W or BB125C
