DS Audio DS-W3 Optical Cartridge System Level3
  • DS Audio DS-W3 Optical Cartridge System Level3
DS Audio DS-W3 Optical Cartridge System Level3
Price:
NZ$ 23,950.00 including GST

NZ$ 20,826.09 excluding GST
DS-W3
Rating:
( 0 reviews )
Purchase Qty:



Independent LED and photo-detector arrangement for the left and right channels

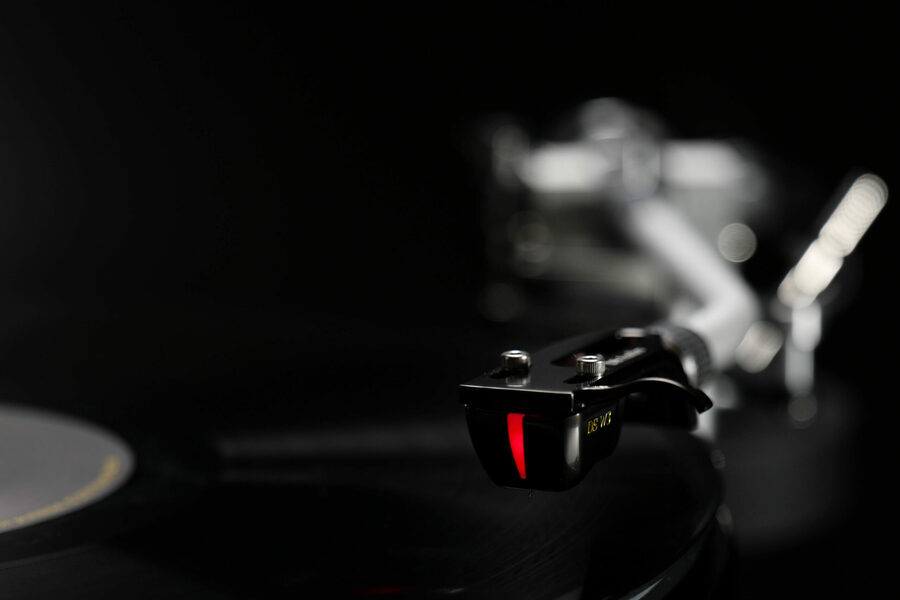

The new DS-W3 optical cartridge system has been optimized, by implementing an independent LED and photo-detector arrangement for the left and right channels. As a result the cartridge output voltage has greatly increased from 40mV to 70mV. The DS-W3 cartridge offers a greatly improved S/N ratio when compared to its stable mates, resulting in an even lower noise floor and far greater musical clarity.

Weight of shading plate reduced by more than 50%

The implementation of independent left and right channel LED’ s allows for the positioning of the optical system to be optimized as well as necessitating the use of a new shading plate that has been significantly reduced in size compared to our earlier designs. In addition to this reduction in size, the material used to produce the shading plate has changed from aluminium (as used in the second generation cartridges) to 99.9% pure beryllium.

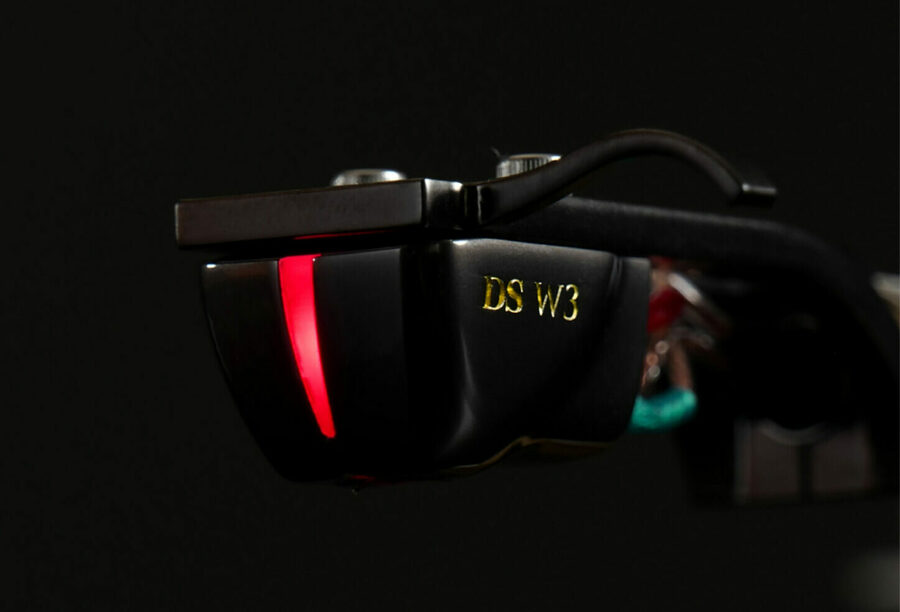

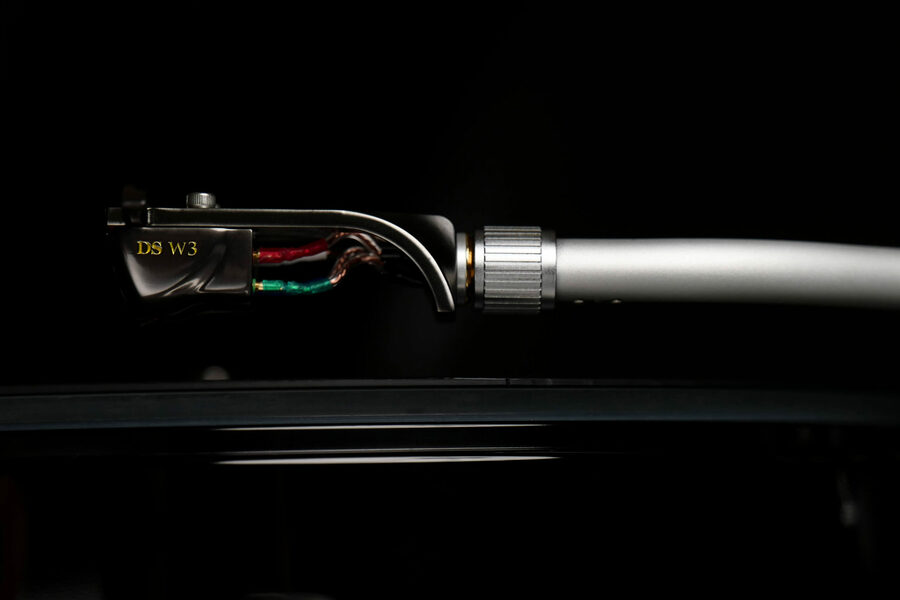

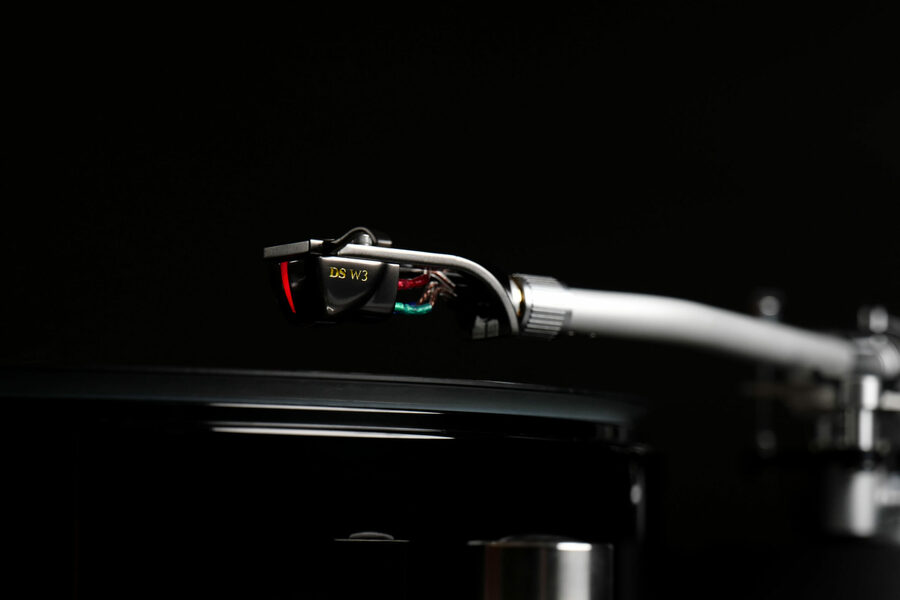

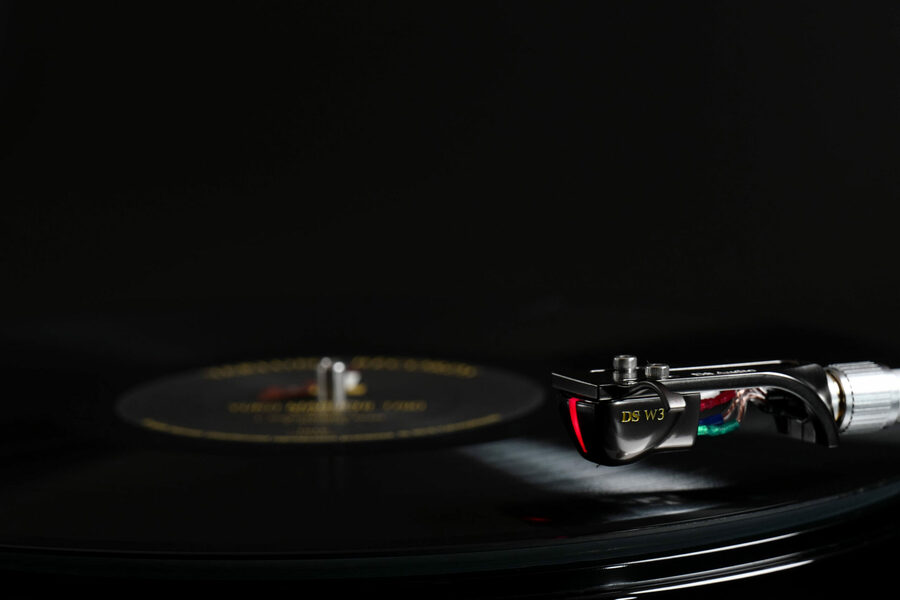

Boron cantilever & Aluminum body

The DS-W3 cartridge features the combination of an boron cantilever with a line contact stylus. The cartridge body is made by aluminum and the structure has been designed in such a way as to promote maximum rigidity. In addition to these features, the DS-W3 utilizes internal wiring 1.6 times thicker than used in the second generation cartridges in order to

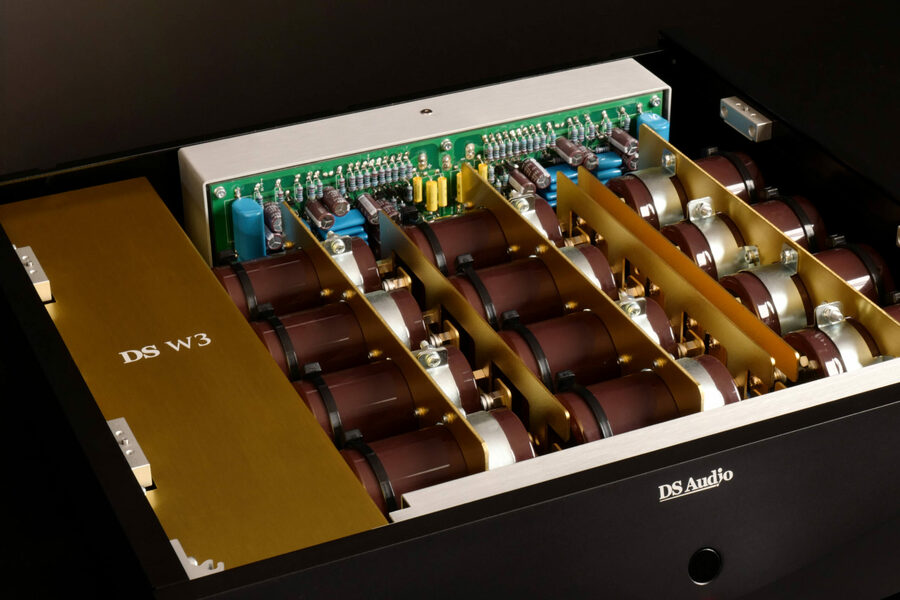

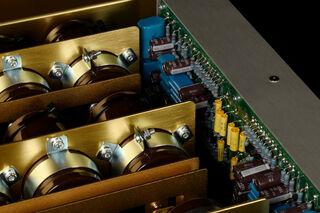

Thicker circuit board and copper foil

Compared to the DS-W2 equalizer, the thickness of the circuit board has been changed from 1.6 mm to 2.0 mm, and the thickness of the copper foil has been changed from 35µ to 70µ.Components are also optimized for third-generation cartridges.In addition, the DS-W3 equalizer has four different low-frequency outputs to choose from. The DS-W3 equalizer has both unbalanced and balanced outputs, so you can choose the output that best matches your system.

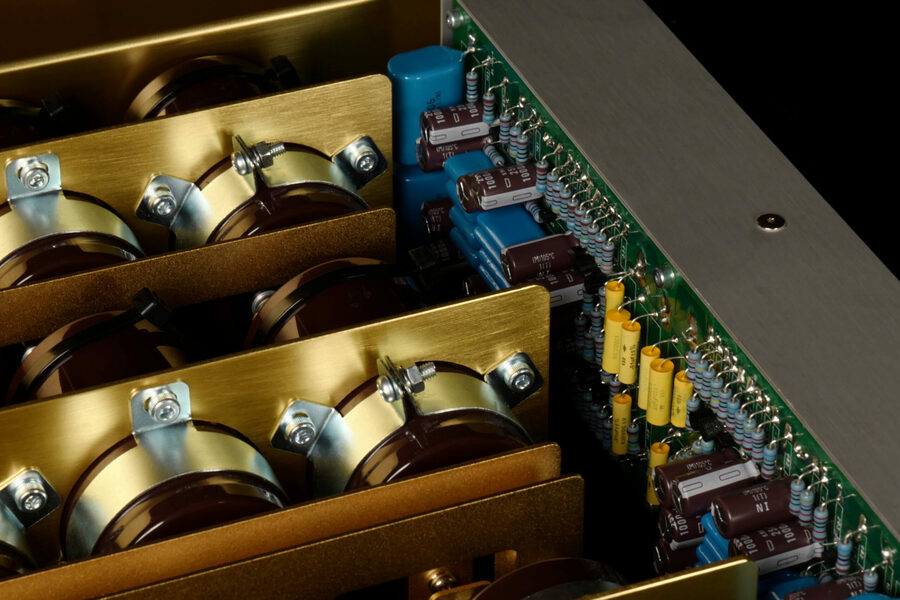

Circuit Board hand made in Japan

Every component part used in our products is tested and evaluated by our expert Japanese technicians.
In addition to using a specially printed circuit board, twist-connection of the component legs is further evidence of DS Audio’ s excellent attention to detail.
Each and every product is hand-made and quality assured by our skilled engineers.

The DS-W3 Optical Cardridge System comes complete with a matched pre-amp which powers the active cartridge and provides a line level source via RCA Sockets.  The New Zealand model comes with a switchable sub sonic filter.

DS-W2 Optical Cartridge
Signal output
Photo-electric Conversion
Channel separation
27db more (1kHz)
Weight
7.9g
Output signal level
70mV more
Canti-lever
Boron
Body material
Aluminum
Stylus
Line contact

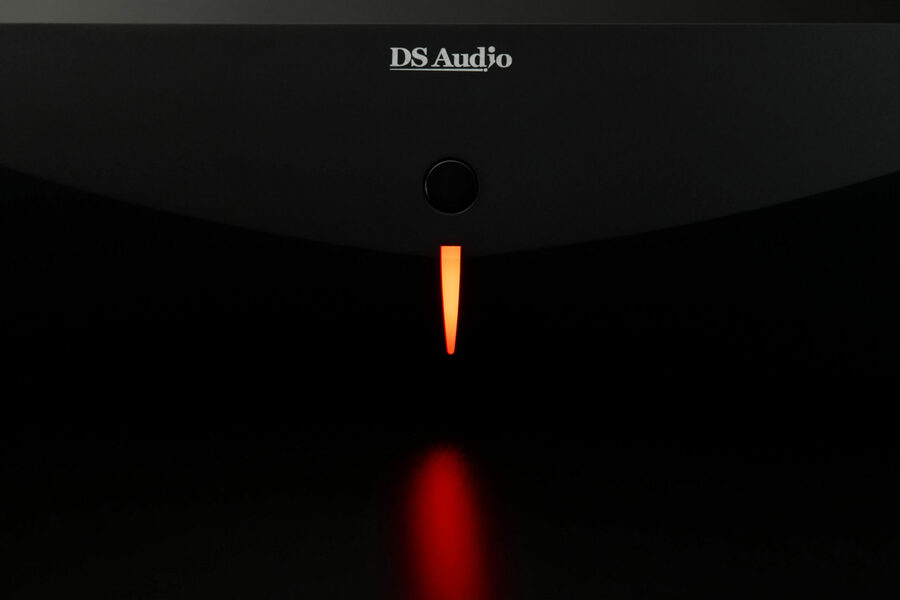

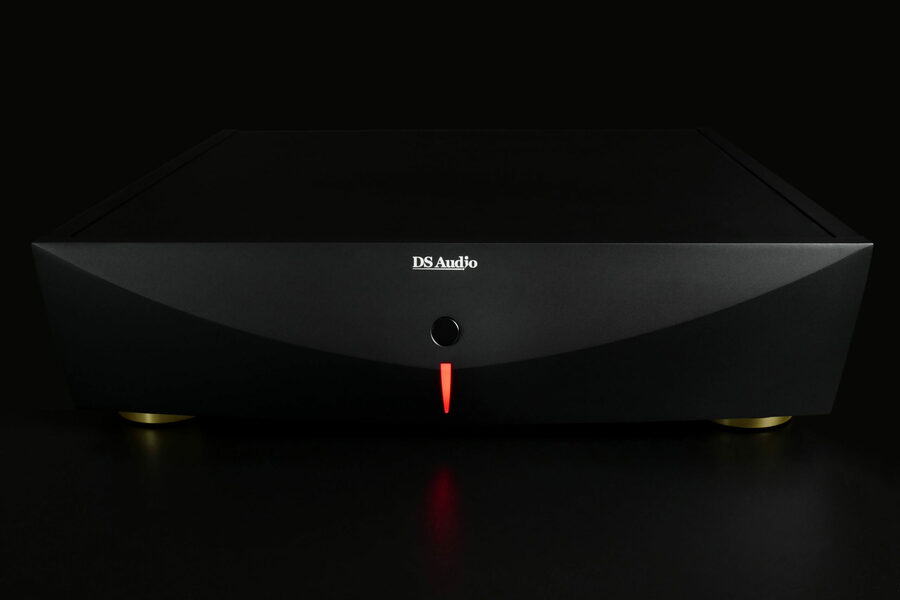

DS-W3 Equalizer for Optical Cartridge
Output voltage
500mV(1kHz)
Output impedance
RCA 120Ω XLR 600Ω
Pre amp input impedance
More than 10kΩ
Input terminal
RCA terminal
Output terminal
RCA terminal×2, XLR terminal×2
Size
W45cm×H12cm×D435cm
Weight
13.5kg
