Rotel Michi S5 500W x2 @8ohm Power Amp
  • Rotel Michi S5 500W x2 @8ohm Power Amp
Rotel Michi S5 500W x2 @8ohm, 800W x2 @4ohm Power Amp
Price:
NZ$ 14,998.99 including GST

NZ$ 13,042.60 excluding GST
MICHI S5
Rating:
( 0 reviews )
Purchase Qty:



The Michi S5 Stereo Amplifier delivers 500 watts per channel into 8 ohms loads with best in class audio performance. The dual monoblock design includes twin, oversized, in-house manufactured toroidal transformers for exceptional bass energy while maintaining control and precision of the finest detail all packaged in an elegant design.

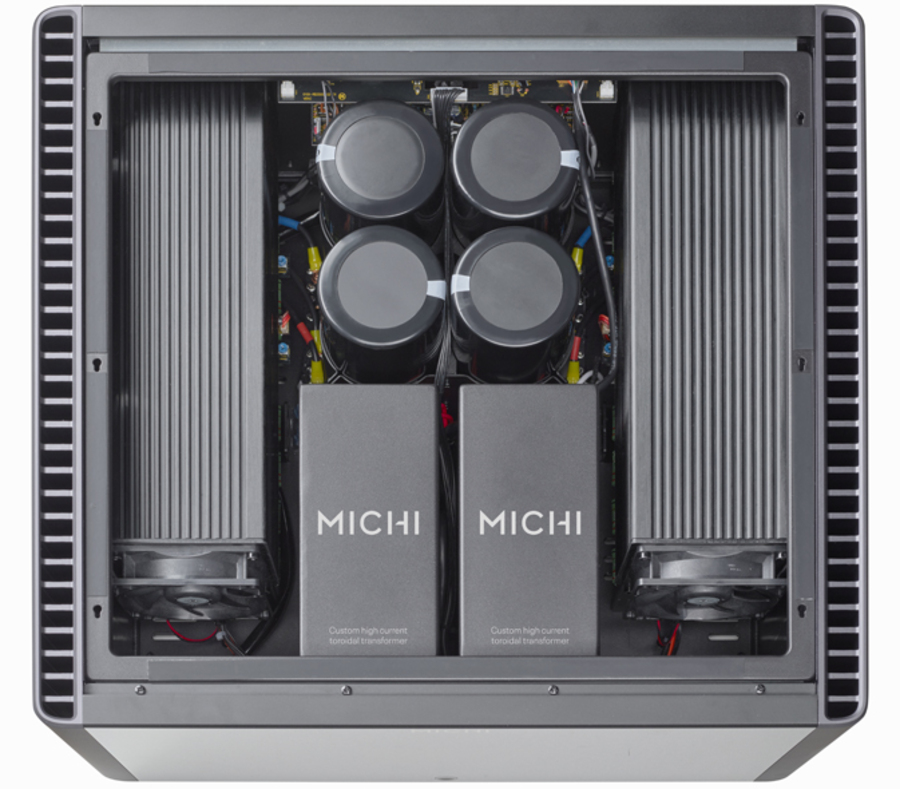

The Michi S5 Stereo Power Amplifier is a best in class linear amplifier delivering 500 watts of Class AB power in 8 ohm and over 800 watts to 4 ohm loads. The dual monoblock architecture is equipped with twin, custom engineered oversized, in-house manufactured 2,200 Volt Amp toroidal transformers in individual epoxy filled enclosures eliminating noise and vibration. A bank of 4 British patented bulk storage capacitors totaling 188,000uF delivers exceptional bass energy while maintaining precise detail and control to 32 high current output transistors ensuring effortless accuracy of the timing and rhythm under even the most difficult of load conditions.

Audio performance must be engineered from product concept through production. This is evidenced in the S5 as the result of countless hours of engineering design reviews, critical component evaluation and sonic tuning. Accuracy at its best while delivering on a promise to ensure the audio provides entertainment deserving of the Michi logo.

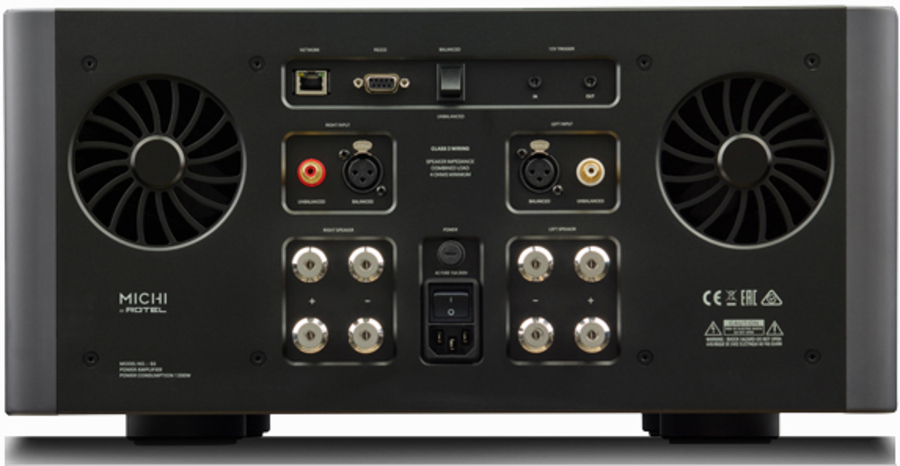

An elegant industrial design puts the finishing touch on this amplifier with a font panel color display and Michi exclusive custom high current 5-way rhodium plated binding posts. The included remote control provides easy setup and operation with RS232 and Ethernet connections supporting all popular control systems.

Power2 x 500 Watts of robust power

Class ABClass AB amplifier Design

CapacitorPatented British bulk storage capacitors

TransformerMassive power supply using dual toroidal transformers

XLRBalanced XLR inputs

Dimensions (W x H x D)
485 × 238 × 465mm
19" × 9.375" × 18.25"

Front Panel Height
220mm (8.625")

Power Requirements
120V, 60Hz

Power Consumption
1200W

Standby Power Consumption
Normal: <0.5W
Network Wakeup: <2W

Net Weight
59.9kg (132.1lbs.)

BTU (4 Ω, 1/8th Power)
3450 BTU/h
Continuous Power Output
500 W/CH (8Ω)
800 W/CH (4Ω)

Total Harmonic Distortion
<0.008%

Frequency Response
20Hz - 20kHz (+0dB, -0.15dB)
10Hz - 100kHz (+0dB, -0.4dB)

Signal to Noise Ratio (IHF “A” weighted)
120dB

Gain
Unbalance: 28dB
Balance: 24dB
Intermodulation Distortion (60Hz:7kHz, 4:1)
<0.03%

Damping Factor
350

Speaker Impedance
4Ω minimum

Input Sensitivity
Unbalance: 2.6V
Balance: 4.2V

Input Impedance
Unbalance: 12.5kΩ
Balance: 100kΩ

Crosstalk / Separation
>65dB
