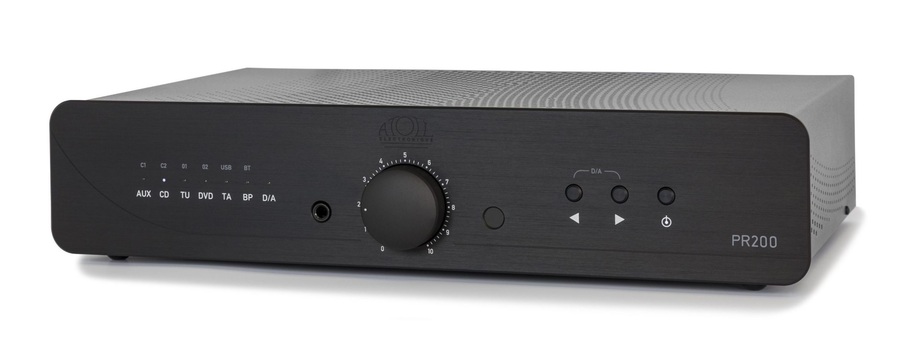

Atoll PR200 Signature Stereo Preamplifier

Price:

NZ$ 2,295.00 including GST

NZ$ 1,995.65 excluding GST

Product Code:

PR200 Signature

Rating:

☆ ☆ ☆ ☆ ☆ ( 0 reviews )

Information
Specifications
Links
Reviews
Associated Items

PR200 SIGNATURE

The PR200 Signature belongs to the range of preamplifiers and power amplifiers offered by ATOLL. This preamplifier represents the modularity and the power that ATOLL wants to put forward: a wide range of combinations and a considerable source of improvements.

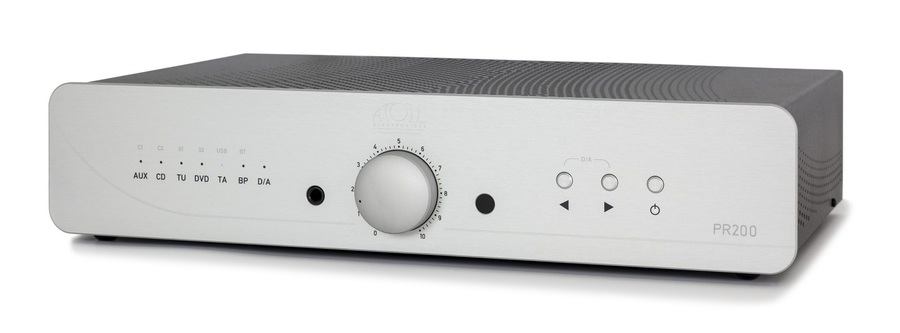

4 mm brushed aluminium front.
340 VA toroidal transformer.
ALPS motorized potentiometer.
Total of capacitors: 31 918 µF.
Monitoring loop.
Balanced discrete component audio stages.
MKP Technology Link Capacitors.

Double-sided circuit boards with nickel/gold finish.
BY-PASS input.
2 analogue preamp outputs.
Optional DAC board: same as included in IN300.
Optional PHONO boards: P50 or P100, can be combined with the DAC board.
12V Trigger output.

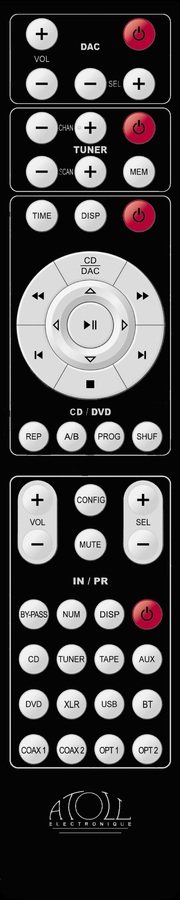

ATOLL global remote control.

PR200 Signature with digital board.

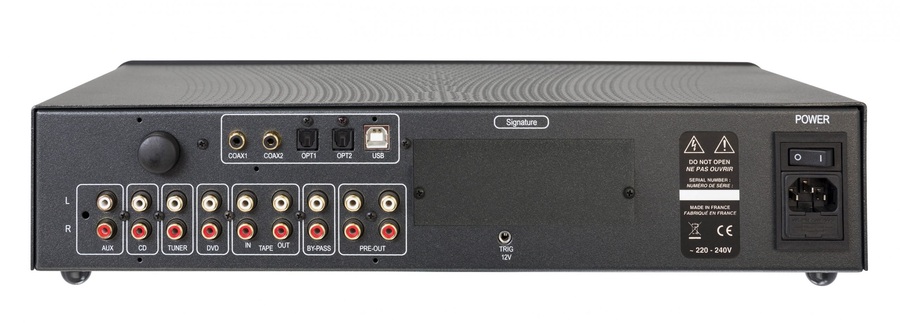

CONNECTIVITY

Inputs

5 Audio inputs (RCA): AUX (or optional P50 / P100 phono stage), CD, TUNER, DVD, TAPE (IN + OUT).
1 BY-PASS input (used as a power amplifier).

Outputs

2 Line preamp outputs (for bi-amplification or to connect a subwoofer).
1 Trigger output (12V).
1 Output jack for headphones Ø 6,35 mm.

OPTIONAL CARDS AVAILABLE

Phono card on the AUX input (your choice):

P100 (configurable MM or MC).

P50 (MM).

———————————

Digital Card (your choice):

DA200

2 Coaxial inputs (24 bits/192 kHz).

2 Optical inputs (24 bits/192 kHz).

1 Bluetooth receiver.

1 USB-B input: PCM & DSD.

DA100

2 Coaxial inputs (24 bits/192 kHz).

2 Optical inputs (24 bits/192 kHz).

Important: Using the USB input of the optional DAC board requires downloading a specific driver for Windows computers. This can be downloaded below. This driver is not necessary under MAC and Linux.

Download XMOS SPECIFIC DRIVER here:

XMOS-Stereo-USB-Audio-Class2-Driver-30BB_v4.13.0.exe

Power supply: 340 VA
Total of capacitors: 31 867 µF
Number of inputs: 5+1 BY-PASS
Bandwidth: 5 Hz – 200 kHz
Rising time: 1,3 µs
Input impedance: 220 kΩ
Sensitivity: 500 mV
Signal/Noise ratio: 100 dBA
Distortion at 1 kHz: 0,005%
Dimensions: 440×300×95 mm
Weight: 8 Kg
