Atoll IN400SE 160 Watt RMS Integrated Amplifier
  • Atoll IN400SE 160 Watt RMS Integrated Amplifier
Atoll IN400SE 160 Watt RMS Integrated Amplifier
Price:
NZ$ 9,995.00 including GST

NZ$ 8,691.30 excluding GST
IN400SE
Rating:
( 0 reviews )
Colour:
  • Black
  • Silver
Do you need a Phono Board:
Purchase Qty:



IN400 SIGNATURE

The IN400se integrated amp-preamp was conceived for optimal musical reproduction and visual perfection. From a mechanical point of view, the chassis is made of 2 mm steel and the front panel of 10 mm aluminium. Its lateral fins are designed to optimally dissipate heat from within the case and absorb mechanical vibrations.

  • 10 mm brushed aluminium front panel.
  • 2×160Wrms / 8Ω
  • Linear power supplies based on the toroidal transformer.
  • Symmetrical stages with discrete components.
  • 8 paired MOS-FET transistors per channel.
  • Low-consumption OLED display.
  • ATOLL global remote control.

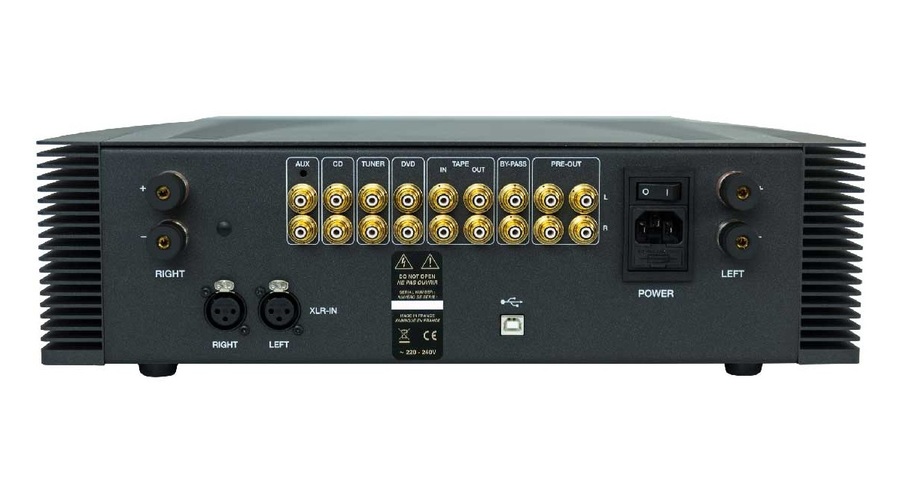

CONNECTIVITY

Inputs

  • 5 Stereo Line inputs: AUX (optional phono), CD, Tuner, DVD, TAPE.
  • 1 BY-PASS input.
  • 1 Stereo XLR input.
  • 1 USB-B input.

Outputs

  • 1 Stereo tape output
  • 2 Stereo Preamp outputs
  • 2 Stereo speaker outputs

Various

  • 1 Headphone output on the front panel (Ø 6,35 mm - 1/4")

View the standard for XLR connector wiring.

The electrical stages are strictly double mono with one specific attenuator per channel and two differentiated star masses. Each component has been rigorously selected and the scheme optimized to fine-tune each bias current and feedback rate. The end goal is to deliver maximum power with so much energy in all registers, in order to offer admirable listening combining sound material and fluidity, naturalness and harmonic richness.

OPTIONAL BOARDS AVAILABLE

1 Phono board on the AUX input (optional):

P100 (configurable MM or MC).

P50 (MM).

Output power/8Ω: 2×160 W
Output power/4Ω: 2×300 W
Power supply: 1050 VA
Total of capacitors: 92 600 µF
Number of inputs: 7 + 1 BY-PASS
Frequency Response: 5 Hz – 100 kHz
Rising Time: 2,5 µs
Input Impedance: 220 kΩ
Sensitivity: 350 mV
Signal/Noise ratio: 100 dB
Distortion at 1 kHz: 0,05%
Dimensions: 440×370×130 mm
Weight: 19 Kg
