Atoll HD120 Headphone Amplifier - Atoll - French HiFi

Name: Atoll HD120 Headphone Amplifier
Brand: New Zealand TV & HiFi Limited
SKU: HD120
Price: 1895.00 NZD
Availability: InStock

Atoll HD120 Headphone Amplifier

Price:

NZ$ 1,895.00 including GST

NZ$ 1,647.83 excluding GST

or four payments of $473.75 with
Learn More

Product Code:

HD120

Rating:

☆ ☆ ☆ ☆ ☆ ( 0 reviews )

Information
Specifications
Links
Reviews
Associated Items

HD100 – HD120

Our headphone amplifiers HD100 and HD120 are equipped with a converter stage to allow you to play digital sources. All our development has been carried out around a selection of the best headphones on the market to guarantee you great versatility and flawless musicality. The HD100 and HD120 models are equipped with a preamp output so that they can be combined with MA100 or any other ATOLL power amplifier.

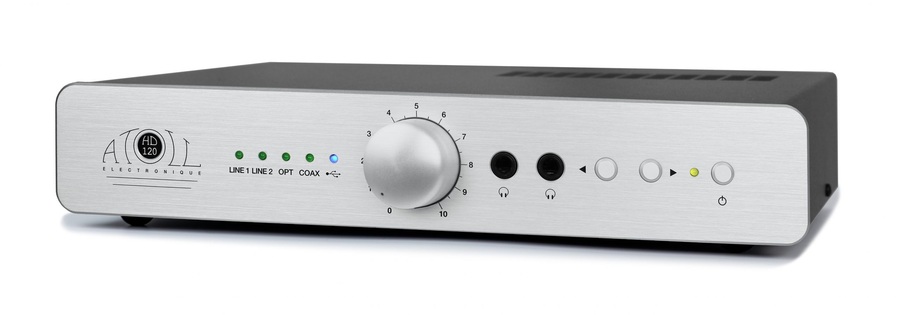

4 mm brushed aluminium front.
3 independent linear transformers (including
2 very low noise reserved for analogue audio in dual mono configuration).
8 regulated power supplies (including 4 specifics for the audio stages).
Analogue volume control (ALPS potentiometer).

Class A biased discrete component audio preamp stages.
Final stage with bipolar transistors.
High-end CLARITY CAP MKP Link Capacitors.
BURR-BROWN PCM5102 converter:
– Dynamic: 112 dB.
– Signal/Noise ratio: 112 dB.

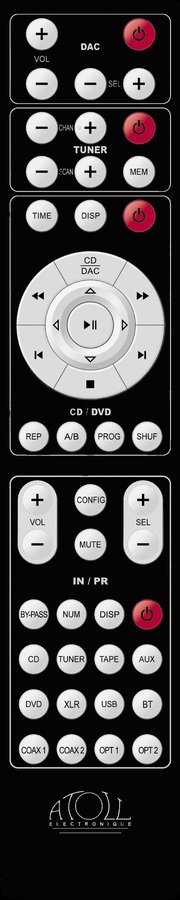

Optional remote control (volume management and selection).

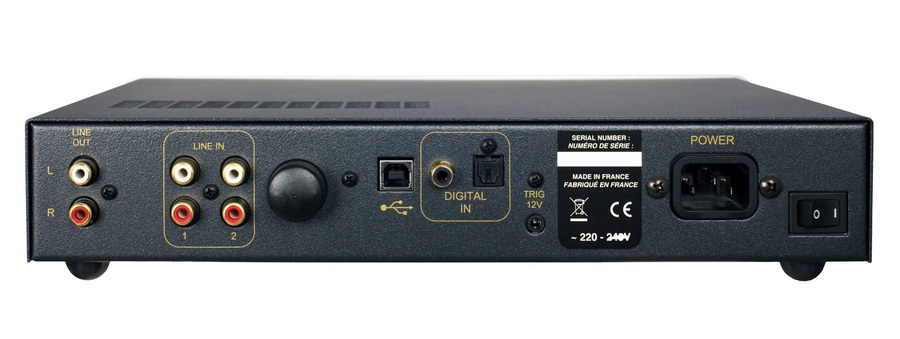

CONNECTIVITY

9 Digital Inputs

2 Line inputs (RCA).
1 Coaxial input (24 bits/192 kHz).
1 Optical input (24 bits/192 kHz).
1 USB-B input (24 bits/192 kHz).
1 Preamplifier output (RCA).
1 Trigger output 12V (direct On/Off connection with the MA100).

For the HD120

1 Bluetooth® input (direct i2S link).

XMOS SPECIFIC DRIVER

Important: Using the USB input of the optional DAC board requires downloading a specific driver for Windows computers. This can be downloaded below. This driver is not necessary under MAC and Linux.

Download XMOS SPECIFIC DRIVER here:

XMOS-Stereo-USB-Audio-Class2-Driver-30BB_v4.13.0.exe

Power supply: 12,4 VA
Rated power: 1,4 W/32Ω
Pulse power: 6,8 W/32Ω
Total of capacitors: 12 425 µF
Number of inputs: 2 analogues, 3 digital, 1 Bluetooth® (HD120)
Input impedance: 220 kΩ
Headphone output impedance (X2): 1Ω
Bandwidth: 1 Hz – 150 kHz
Rising time: 1,5 µs
Signal/Noise Ratio: 100 dB
Distortion rate at 1 kHz: < 0,01%
Dimensions (mm): 320×225×63
Weight: 3 Kg
