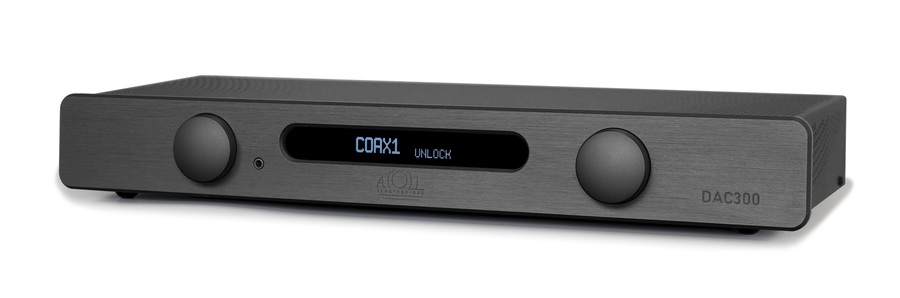

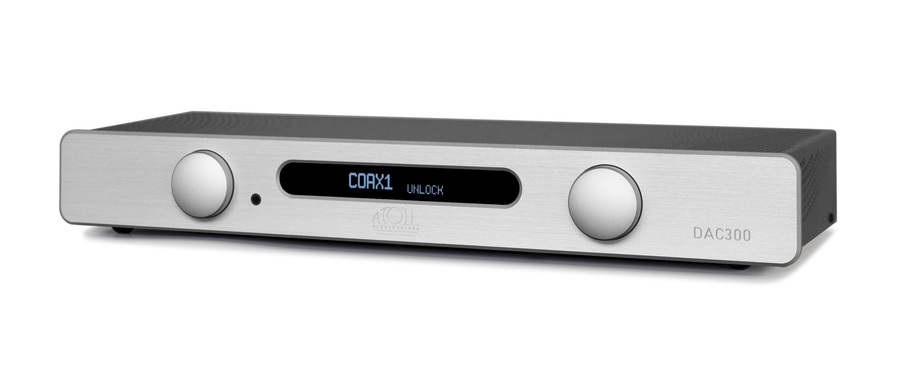

• 8 mm brushed aluminium front.
• 3 independent very low noise linear transformers (including 2 reserved for the audio line).
• SABRE ES9038PRO Converter (32 bits/768 kHz):
           – Dynamic: 137 dB.
           – THD at 1 kHz (0 dBF): -122 dB.
           – Signal/Noise ratio: 132 dB.
• SABRE ES9311EQ power supply with very low noise (<1 μVrms).
• Separate digital and stage line power supplies.
• Ultra-high precision low jitter clock.
• Asynchronous USB-B input can convert PCM up to 768 kHz and DSD64, 128, 256 and 512 (XMOS USB interface with a specific program designed for ATOLL).

• Volume management by disengageable converter (BY-PASS ON or OFF).
• Unbalanced and balanced output lines.

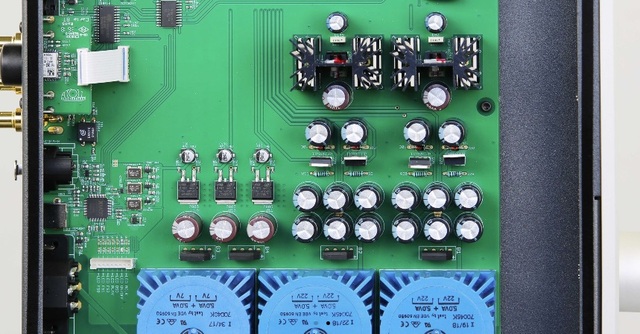

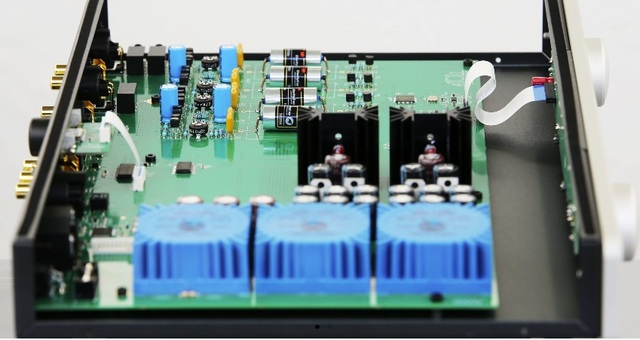

• 12 independent voltage regulations.
• Symmetrical power supply of the audio output stages (low noise transformers).
• ESA series CLARITY CAP audio MKP link capacitors.
• High-frequency capacitors with silver mica technology.
• Output stages with discrete components, without feedback, polarized in class A.
• Specific transformer for digital stages.

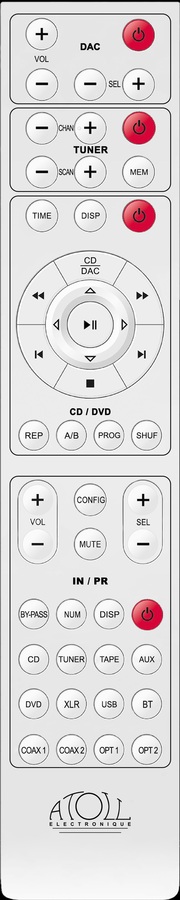

• Standard ATOLL global remote control.

Type of files read:

S/PDIF inputs can support PCM up to 192 kHz.
USB-B can convert PCM up to 768 kHz and DSD64, 128, 256 and 512.
(This performance may vary depending on the software or operating systems of the USB source).

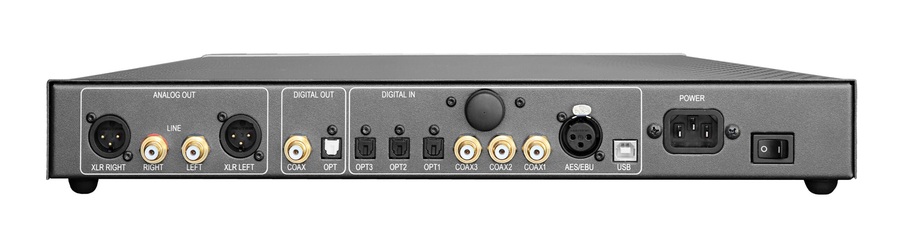

CONNECTIVITY

9 Digital Inputs

• 3 Coaxial.
• 3 Toslink optics.
• 1 AES/EBU.
• 1 Bluetooth®.
• 1 USB-B.

2 Digital Outputs

• 1 Coaxial and 1 optical.

3 Line Outputs

• 1 Stereo unbalanced RCA.
• 1 Balanced stereo XLR.
• 1 Headphone jack Ø 3,5 mm.

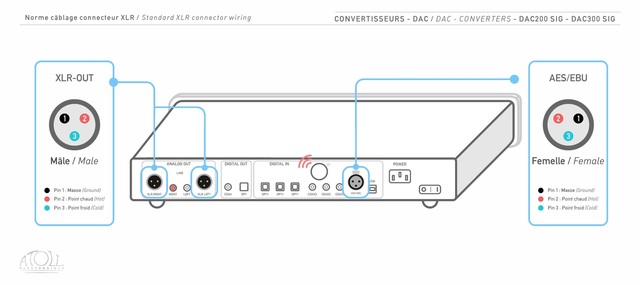

View the standard for XLR connector wiring.
