Atoll CD400SE Top Loading CD Player

Price:

NZ$ 10,895.00 including GST

NZ$ 9,473.91 excluding GST

Product Code:

CD400SE

Rating:

☆ ☆ ☆ ☆ ☆ ( 0 reviews )

Information
Specifications
Links
Reviews
Associated Items

CD400SE – DR400SE

The CD400se and the DR400se models have their chassis made of massif aluminium sides that ensure perfect mechanical inertia. In addition, the original shape has been studied to absorb better all vibrations. The top loading drive specifically developed for the 400 line consists of mechanical elements in steel and aluminium treated against vibrations, decoupled from the frame of the device by four metal spacers. This greatly enhances the accuracy of the laser and the error correction circuits. This construction greatly improves the musical timbres and treble reproduction.

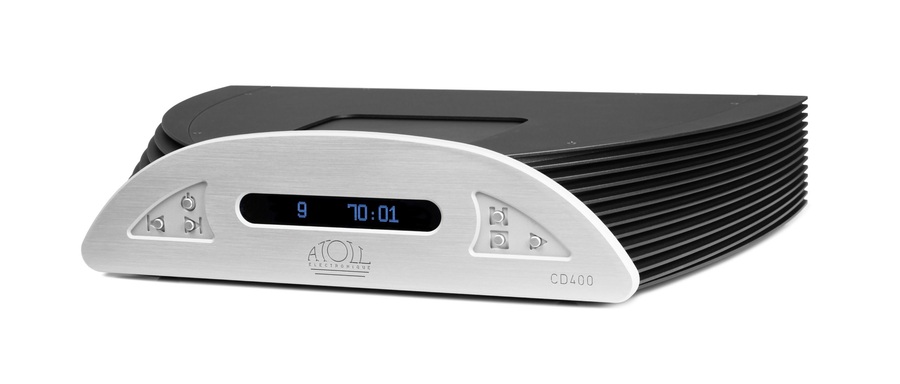

8 mm brushed aluminium front.
8 regulated power supplies including a specific low-noise one for the converter.
Separate 10 VA transformers for the audio stages.
Current-voltage conversion stages designed by Atoll using bipolar transistors.
BURR-BROWN PCM1792 converter:
– 24 bits/192 kHz.
– Dynamic: 129 dB.
– Signal/Noise ratio: 129 dB.
Original TEAC central CD mechanics.
Pure audio CD player compatible: CD, CD-R, CD-RW, MP3, WMA-AAC.

2xPCM1794 converters (one per channel).
Symmetrical stages with discrete components without feedback.
MKP-type audiophile capacitors.
Toroidal transformer of 160 VA dedicated to audio stages.

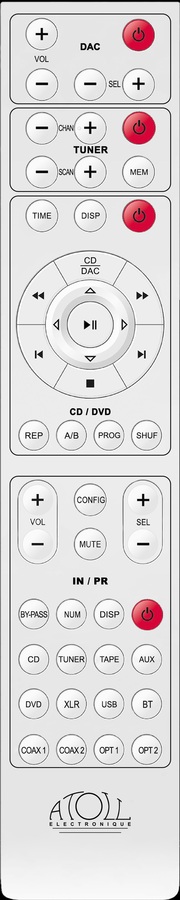

ATOLL global remote control.

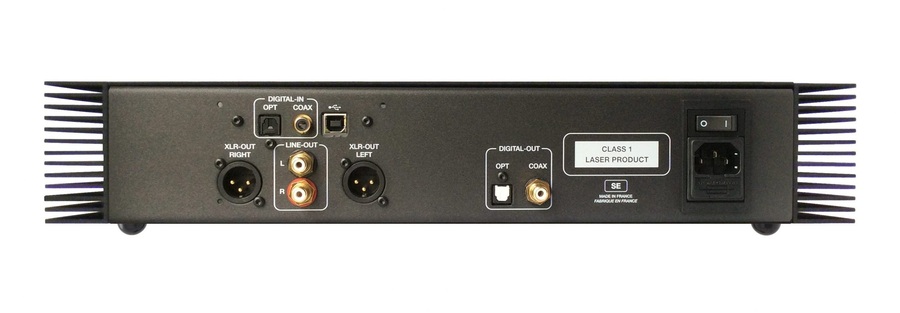

CONNECTIVITY

Inputs

2 Digital inputs (1 optical & 1 coaxial).
1 USB-B input.

Outputs

2 Stereo XLR outputs.
1 Stereo line output.
2 Digital outputs (1 optical & 1 coaxial).

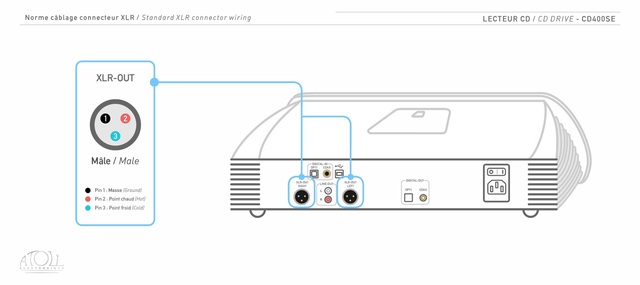

Consult the standard for wiring XLR connectors.

The digital signals are perfectly shielded and follow an optimized path to fight against the effects of jitter. In the CD400se, the use of two independent converters, one per channel, avoids crosstalk and significantly improves the signal-to-noise ratio and the dynamic.

XMOS SPECIFIC DRIVER

Important: Using the USB input of the optional DAC board requires downloading a specific driver for Windows computers. This can be downloaded below. This driver is not necessary under MAC and Linux.

Download XMOS SPECIFIC DRIVER here:

XMOS-Stereo-USB-Audio-Class2-Driver-30BB_v4.13.0.exe

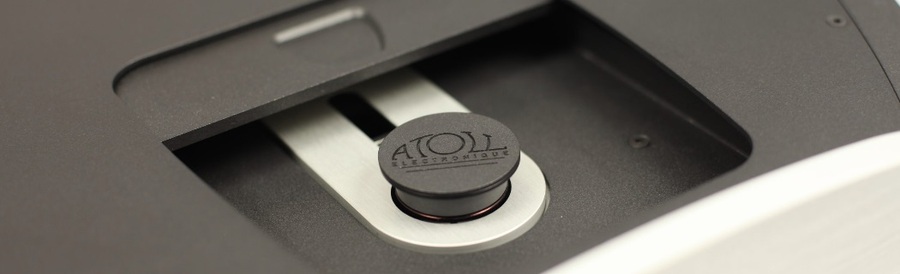

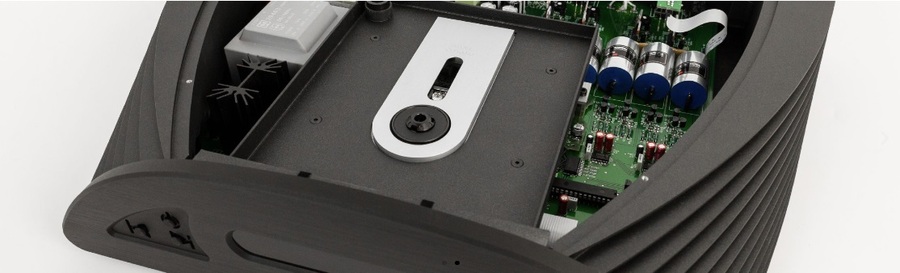

“TOP LOADING ATOLL” mechanical is used for the CD400se and the DR400se.

• Anti-vibration system.
• Solid aluminum sidewalls.
• CD text.

Power supply: 30+160 VA
Total of capacitors: 17 000 µF
Output stages: Symmetrical discrete stages
Output level: 2 Vrms
Output Impedance: 5,6Ω
Converter (N/A): 24 bits/192 kHz
Digital Output: Coaxial & Optical
Digital Input: Coaxial – Optical – USB-B
Signal/Noise ratio: 125 dB
Distorsion at 1 kHz: 0,002%
Bandwidth: 5 Hz – 20 kHz
Rising time: 1,5 µs
Dimensions (mm): 430×320×90
Weight: 9 Kg
