Atoll AM200 Signature 120 Watt 2 Channel Power Amp
  • Atoll AM200 Signature 120 Watt 2 Channel Power Amp
Atoll AM200 Signature 120 Watt 2 Channel Power Amplifier
Price:
NZ$ 2,995.00 including GST

NZ$ 2,604.35 excluding GST
AM200 Signature
Rating:
☆ ☆ ☆ ☆ ☆ ( 0 reviews )
Colour:
  • Black
  • Silver
Purchase Qty:



AM200 SIGNATURE

The AM200 Signature block is suitable for most HIFI or audio-video applications. Very scalable, it can be used alone or in bi-amplification. The amplifier can be bridged as a mono block via an internal switch. In addition, it is equipped  as standard  with a 12V Trigger input (direct ignition in connection with a preamp).

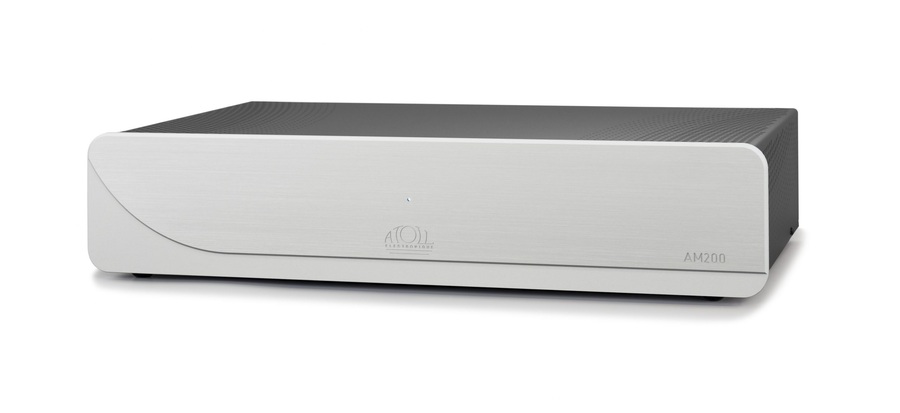

  • Front panel in 8mm brushed aluminum.
  • Power 2×120 W / 8Ω.
  • 2 toroidal transformers of 340 VA each.
  • Filter capacitors: 8×6800 μF high quality, low ESR specific for ATOLL.
  • Dual push-pull MOS-FET power stage.
  • Integral dual mono architecture.

  • Balanced audio stages with discrete components.
  • MOS-FET power transistor.
  • Polarization of the output stages in class A/B.
  • Double-sided circuit boards with nickel/gold finish.
  • Bridgeable in mono block.
  • 12V Trigger input.

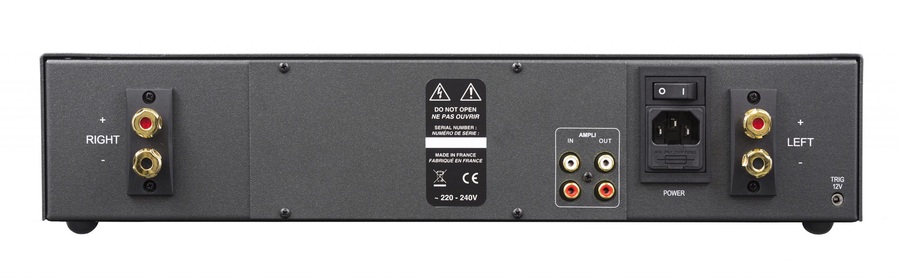

 CONNECTIVITY
  • 1 RCA stereo analog input.
  • 1 RCA stereo analog output.
  • 12V Trigger input.
  • HP outputs on gold-plated screw terminals.










Power Wrms/channel/8Ω : 2×120 W
Power Wrms/channel/4Ω : 2×200 W
Power supply  : 2×340 VA
Total capacitance  : 57,280 µF
Number of inputs  : 2
Bandwidth  : 5 Hz – 100 kHz
Operating time rise  : 1.5 µs
Input impedance  : 220 kΩ
Sensitivity  : 1.77 V
Signal-to-noise ratio  : 100 dB
Distortion rate at 1 kHz : 0.05% / 10 W
Dimensions  : 440×295×95 mm
Weight  : 12 kg

DOCUMENTS AM200 Sig

Manual

Device tree:

  1. In MONO
  2. In BI-AMPLIFICATION
  3. In STEREO
