Atoll AM300 Signature 150 Watt 2 Channel Power Amp
  • Atoll AM300 Signature 150 Watt 2 Channel Power Amp
Atoll AM300 Signature 150 Watt 2 Channel Power Amplifier
Price:
NZ$ 4,995.00 including GST

NZ$ 4,343.48 excluding GST
AM300 Signature
Rating:
☆ ☆ ☆ ☆ ☆ ( 0 reviews )
Colour:

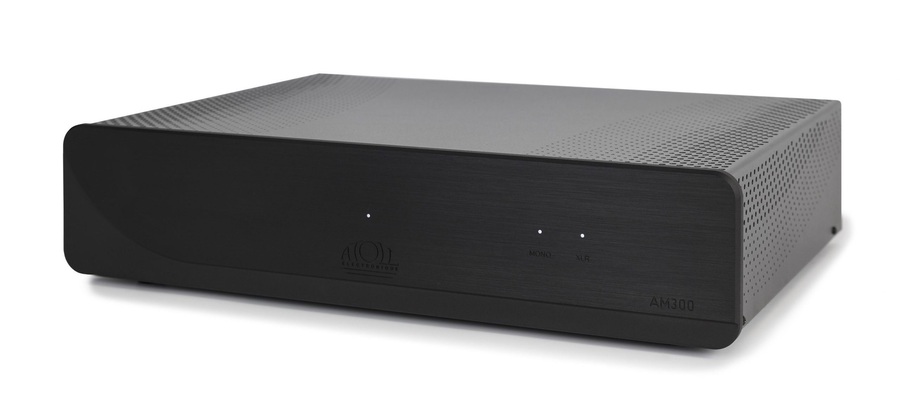

  • Black
  • Silver
Purchase Qty:



AM300

The AM300 power unit  is suitable for most HIFI or audio-video applications. Very scalable, it can be used alone or in bi-amplification. It can be associated with an integrated amplifier or an ATOLL preamplifier. It can be bridged as a mono block via an internal switch. It is equipped as standard  with a 12V Trigger input (direct ignition in connection with a preamp).

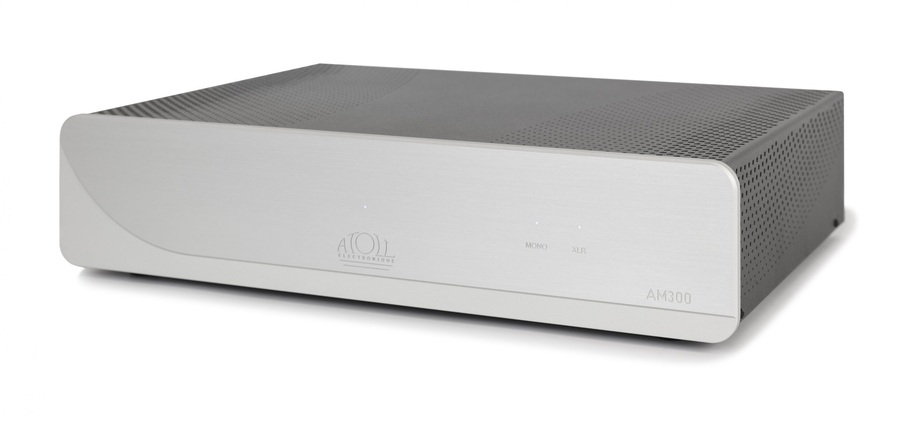

  • 8mm brushed aluminum front.
  • Power 2×150 W / 8Ω.

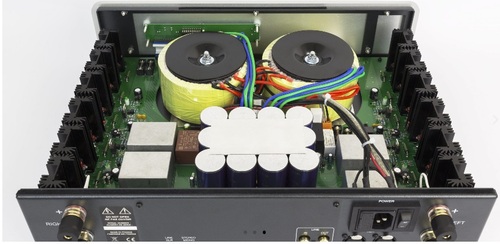

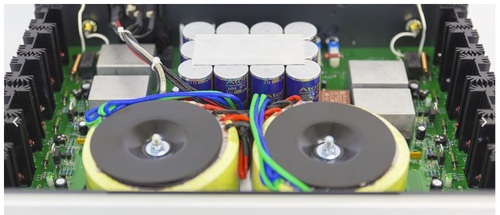

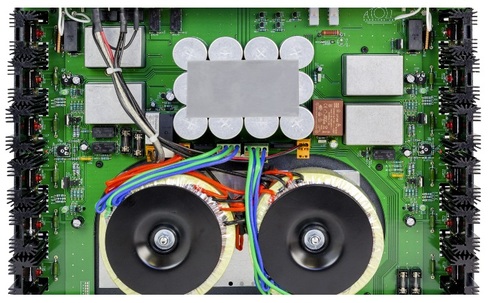

  • 2 toroidal transformers of 440 VA each.
  • Filter capacitors: 8×6800 μF high quality, low ESR specific for ATOLL.
  • Triple push-pull MOS-FET power stage.
  • Integral dual mono architecture.
  • Balanced XLR and RCA line inputs.
  • Balanced audio stages with discrete components.
  • 6 MOS-FET power transistors per channel.
  • Polarization of the output stages in class A/B.
  • Double-sided circuit boards with nickel/gold finish.
  • Bridgeable in mono block.
  • 12V Trigger input.

Thanks to its RCA and XLR input, the AM300 power amp can be easily combined with any ATOLL hi-fi or home cinema pre-amplifier .

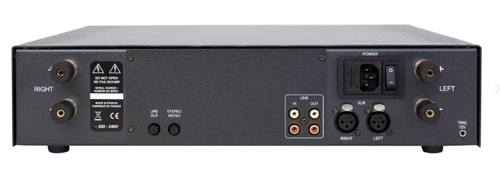

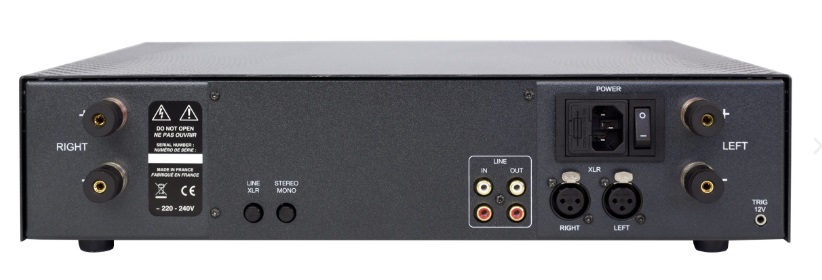

 CONNECTIVITY

Audio Inputs

  • 1 Stereo line input.
  • 1 Stereo XLR input

Audio Outputs

  • 1 Stereo line output.
  • 1 Stereo speaker output.

Miscellaneous

  • 1 12V Trigger Input.
  • 1 Bridged-mono switch.
  • 1 Line/XLR switch.

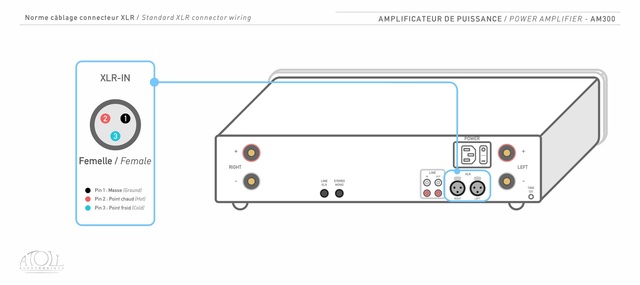

View the standard for XLR connector wiring













Power Wrms/channel/8Ω (230v): 150 W
Power Wrms/channel/4 Ω (230v): 280 W
Power in mono/8 Ω bridged mode: 500 W
Power supply: 2×440 VA
Total capacitance: 83,300 μF
Number of Stereo inputs: 1 RCA + 1 XLR
Bandwidth: 5 Hz – 200 kHz
Rise time: 1.5 μs
Input impedance: 220 kΩ
Sensitivity: 1.7 V
Signal/noise ratio: 100 dB
Distortion rate at 1 kHz: 0.005%
Dimensions: 440×351×103 mm
Weight: 16 Kg

AM300 DOCUMENTS

Manual

Device tree:

  1. In MONO
  2. In BI-AMPLIFICATION
  3. In STEREO

Press articles
