Atoll AM100 Signature 100 Watt 2 Channel Power Amp - Atoll - French HiFi

Atoll AM100 Signature 100 Watt 2 Channel Power Amp
  • Atoll AM100 Signature 100 Watt 2 Channel Power Amp
Atoll AM100 Signature 100 Watt 2 Channel Power Amplifier
Price:
NZ$ 2,295.00 including GST

NZ$ 1,995.65 excluding GST
AM100 Signature
Rating:
☆ ☆ ☆ ☆ ☆ ( 0 reviews )
Colour:

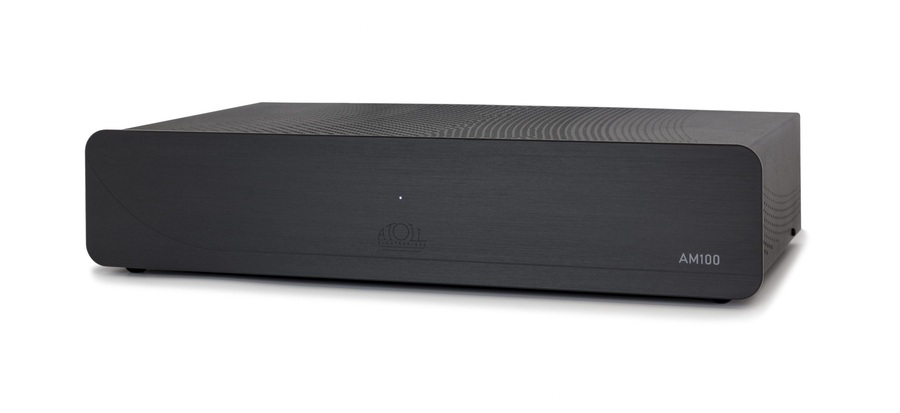

  • Black
  • Silver
Purchase Qty:

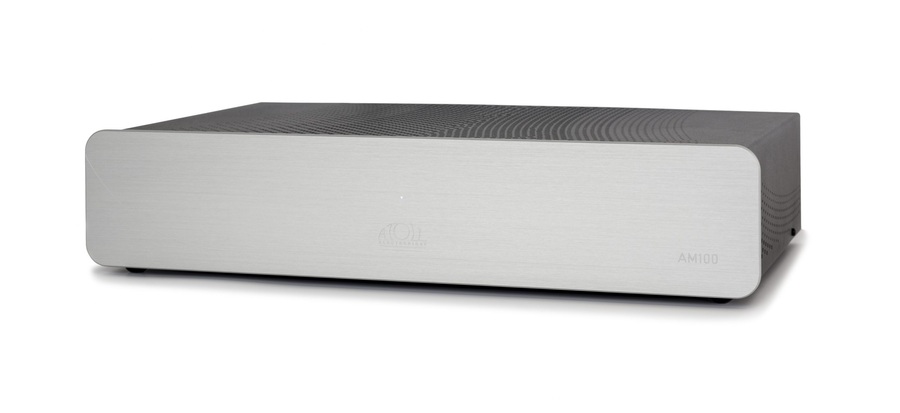

AM100 SIGNATURE

The AM100 Signature block is suitable for most HIFI or audio-video applications. Coupled with a PR200 Signature, the listening is transparent and detailed, the different plans are rigorously respected. Very scalable, it can be used alone or in bi-amplification. The amplifier can be bridged as a mono block via an internal switch. It is equipped  as standard  with a 12V Trigger input (direct ignition in connection with a preamp).


  • Front panel in 4mm brushed aluminum.
  • Power 2×100 W / 8 Ω
  • 2 toroidal transformers of 340 VA each.
  • Filter capacitors: 4×6800 μF.
  • Balanced audio stages with discrete components.

  • MOS-FET power transistor.
  • Polarization of the output stages in class A/B.
  • Double-sided circuit boards with nickel/gold finish.
  • Bridgeable in mono block.
  • 12V Trigger input.

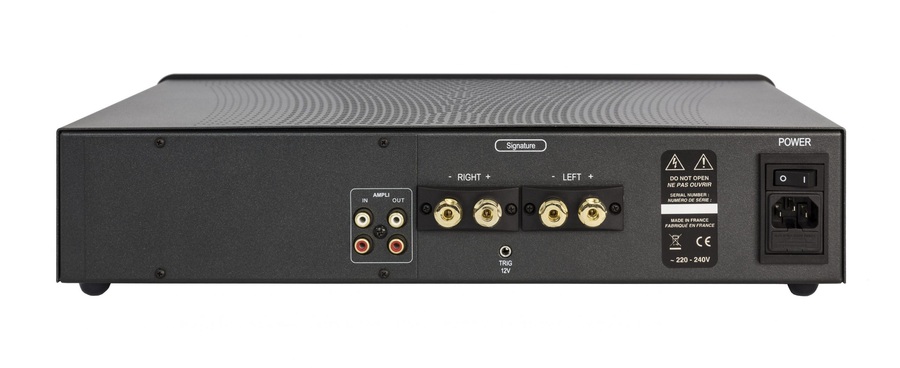

 CONNECTIVITY
  • 1 RCA stereo analog input.
  • 1 RCA stereo analog output.
  • 1 12V Trigger Input.
  • HP outputs on gold-plated screw terminals.









Power Wrms/channel/8Ω : 2×100 W
Power Wrms/channel/4Ω : 2×140 W
Power supply  : 2×340 VA
Total capacitance  : 32,247 µF
Number of inputs  : 2
Bandwidth  : 5 Hz – 100 kHz
Operating time rise  : 1.3 µs
Input impedance  : 47 kΩ
Sensitivity  : 1.77 V
Signal/Noise ratio  : 100 dBA
Distortion rate at 1 kHz : 0.05% / 10 W
Dimensions  : 440×291×95 mm
Weight  : 11 kg

DOCUMENTS AM100 Sig

Manual

Device tree:

  1. In MONO
  2. In BI-AMPLIFICATION
  3. In STEREO
