DENON Integrated Network Amplifier with HEOS - Denon
|
|
Information
PMA-900HNE
Integrated Network Amplifier with HEOS® Built-in music streaming
The Denon PMA-900HNE Integrated Network Amplifier, featuring Advanced High Current amplifier design, delivers superior audio from analog and digital sources. With Phono input, digital inputs for TV sound, plus network audio streaming by HEOS® Built-in, Denon PMA-900HNE upgrades your listening experience from any source.
- Stereo amplifier
- 50W per channel (8 ohms)
- Advanced circuitry
- HEOS Built-in
- Digital inputs
- MM/MC phono
Streaming amplifier with analog and digital connectivity
Bring out the best from your analog, digital, and streaming sources with the Denon PMA-900HNE Integrated Network Amplifier featuring Advanced High Current amplifier design.
Advance High Current integrated amplifier with 85W
Engineered with premium Denon amplifier technology and Advanced High Current capability, the PMA-900HNE integrated amplifier drives your loudspeakers with 85 watts of power-per-channel into 4 ohms.
Built-in music streaming via Wi-Fi, Bluetooth, and AirPlay 2 capability.
The HEOS® Built-in Wi-Fi connects to your network to provide near-limitless streaming options. Listen to a wide array of online music services or connect to a smart device via AirPlay 2 or Bluetooth.

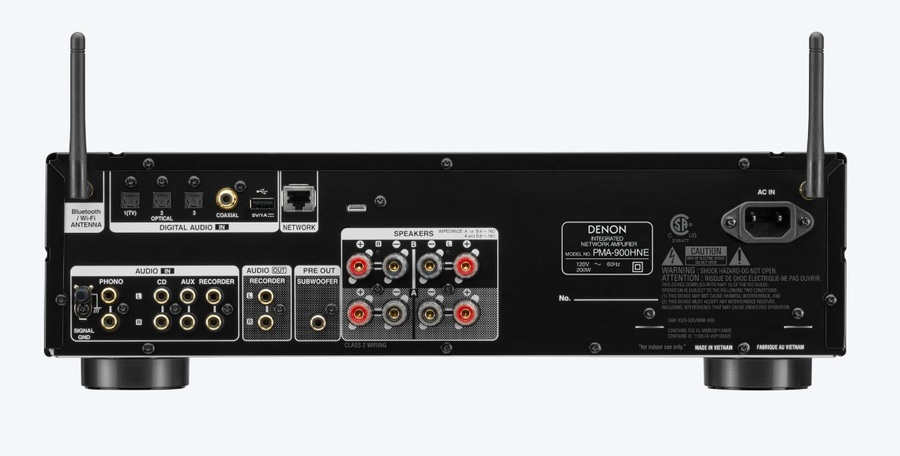

Optical and coaxial digital inputs
The PMA-900HNE features three optical inputs and one coaxial input and supports PCM signals up to 192 kHz/24-bit to improve sound quality of your TV audio and more.

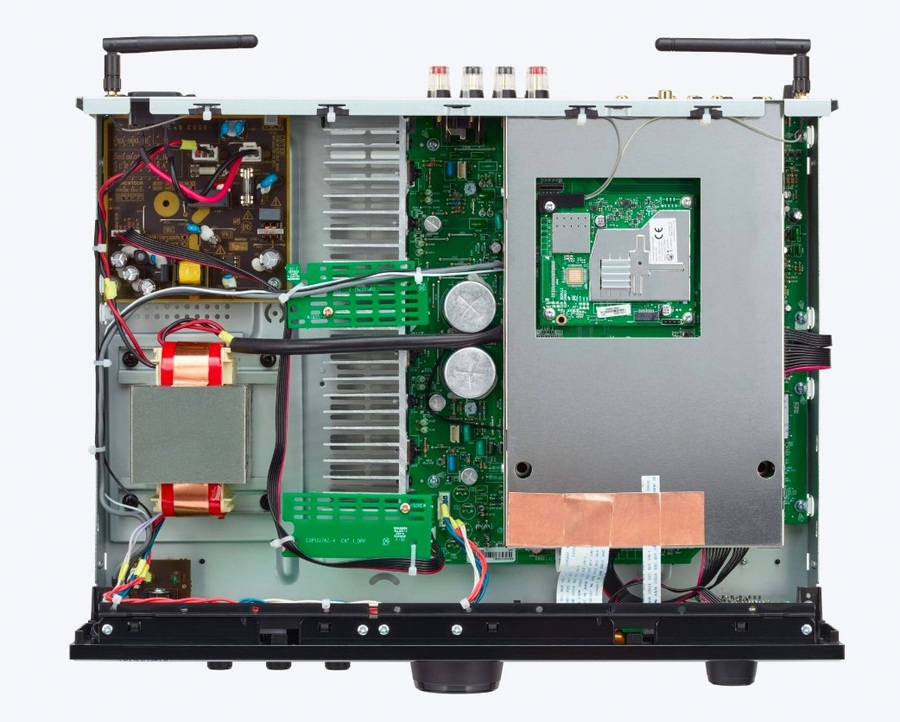

Build integrity with selected components
With more than 110-year of audio excellence, Denon products are built to last.
BT Re-Broadcast
Bluetooth® re-broadcast offers customers a convenient and wire-free way to enjoy their favorite audio content using a pair of wireless Bluetooth® headphones or portable speaker within the range of PMA-900HNE.
Specifications
Output power 8 Ohm (20 Hz - 20 kHz, T.H.D. 0.07%)
50W + 50W
Output power 4 Ohm (1 kHz, T.H.D. 0.7%)
85W + 85W
Total Harmonic Distortion
0.01% (-3dB, 8ohm, 1kHz)
Power Amplifier Circuit
Advanced HC Single Push-Pull Circuit
Power Amp Output circuit Structure
Single Push-Pull with Darlington transistor
Pre Amplifier Circuit
Variable Gain Preamplifier
Volume
Electric - Controlled by Encoder
Bass Treble Mid Balance Control
Yes / Yes / No / Yes
Source Direct
Yes
Input Sensitivity: MM
2.5mV / 47 kohm
Input Sensitivity: MC
200
Signal to Noise Ratio: MM/MC
86 dB / 71 dB
Input Sensitivity: High level
105 mV / 40kohms (Source Direct Off)
Signal to Noise Ratio: High level
105dB
Treble Control
± 8 dB at 10 kHz
Bass Control
± 8 dB at 100 Hz
Available colors: Premium Silver / Black
Yes / Yes
Metal Front Panel
Aluminum
Power Consumption in W
200W
Standby Consumption in W
0.2W
Auto Power Off
Yes
Detachable Power Cable
Yes
Remote Control
RC-1246
System Remote Function
Yes
Maximum Dimensions (W x D x H)
434 x 376 x 131mm
17.1 x 14.8 x 5.2in
Weight
8.3kg
18.3lb
Carton Maximum Dimensions (W x D x H)
518 x 385 x 209mm
20.4 x 15.2 x 8.2in
Carton Weight (inc. product)
10.3kg
22.7lb
