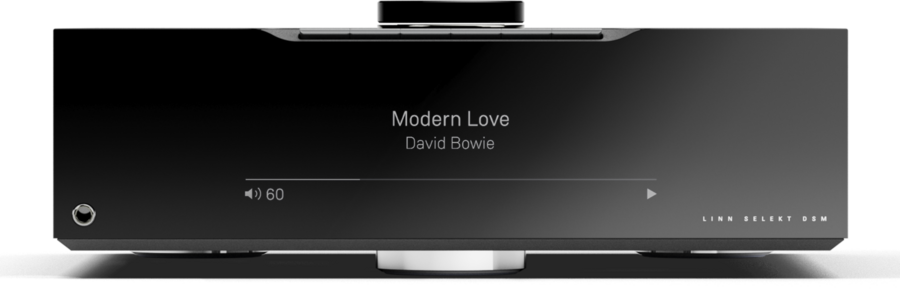

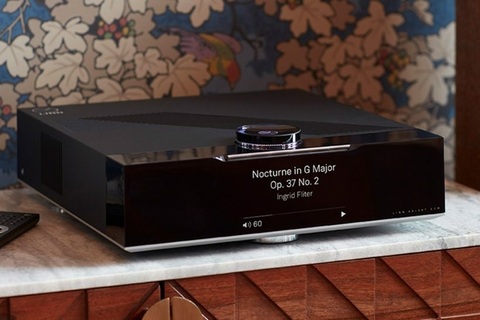

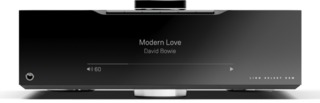

Linn Selekt Classic Hub with 2ch Line Out (XLR & RCA) with Organik DAC

Classic Hub features powder-coated, folded aluminium casework mounted atop an 8mm-thick, machined-aluminium base.

Classic Hub possesses a tactile central control dial, and an array of six programmable ‘smart’ buttons for convenient, one-touch access to favourite playlists, artists, albums, or inputs. With their intuitive operation, these interfaces encourage physical interaction with your system.

A broad range of connectivity ensures that Classic Hub can receive and deliver audio from any source imaginable; with a high-performance, integrated, analogue-to-digital conversion stage accepting anything from turntables to CD players, and a host of digital connections allowing connection to video streaming devices, games consoles, and Blu-ray players – ensuring you get tremendous sound quality from anything you connect to your Selekt DSM.

Organik DAC

Designed without compromise, and engineered entirely in-house, Organik is the breathtaking culmination of over thirty years of digital technology expertise. Available in stereo and higher-performing dual-mono variants.

There are many different types of ‘discrete’ DAC. Although simply making something ‘discrete’ does not necessarily result in high performance. The performance advantage of Organik comes from its unique combination of:

Modulation method – Pulse Width Modulation (PWM) Delta-Sigma
Conversion stage – Discrete Analog Finite Impulse Response (AFIR)
Implementation – Ultra-stable power, precision clocking, and expert PCB design

When employed together, the PWM modulator and AFIR conversion stage are immune to many of the problems that affect other discrete designs — where small errors in switching times or resistor values can generate distortion.

However, in order to realise the full potential of this conversion method, great attention must also be paid to other factors such as power supply, clocking, and perhaps most importantly, the physical layout of the circuit board.

Organik uses an 8-layer circuit board, facilitating optimal delivery of power and clocks to the DAC. Power for the conversion stage is generated by a discrete regulator, and delivered using multiple internal power planes.

Clock traces are matched to within fractions of a millimetre, to ensure that every part of the DAC receives its clock at precisely the same time. All these elements work in harmony to create an analog signal with incredibly low levels of noise and distortion — far lower than anything we’ve ever achieved before.

2 Channel Line out XLR & RCA

Source only (Pre-amp) to connect to your existing amplifier and speakers
