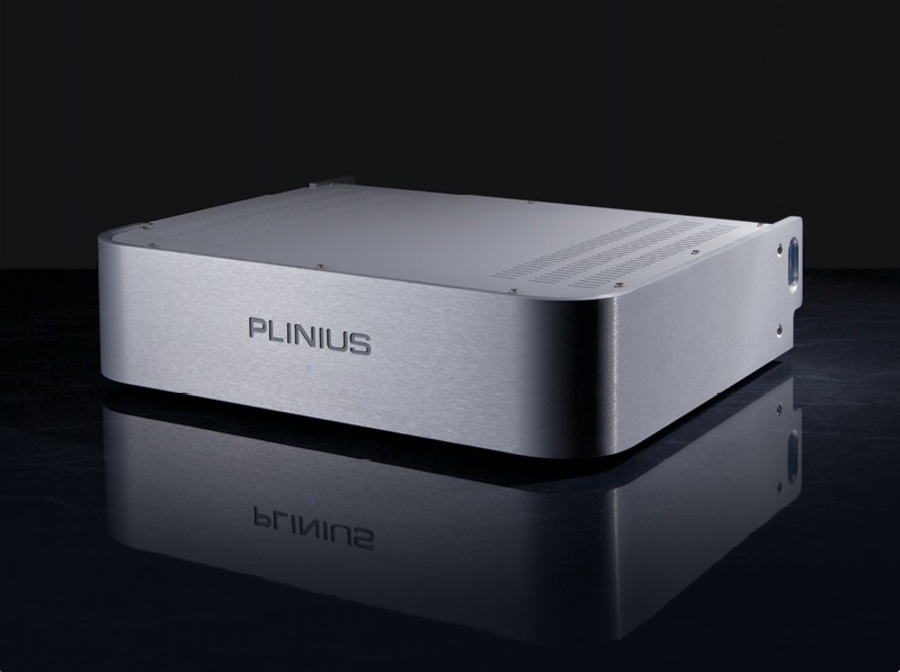

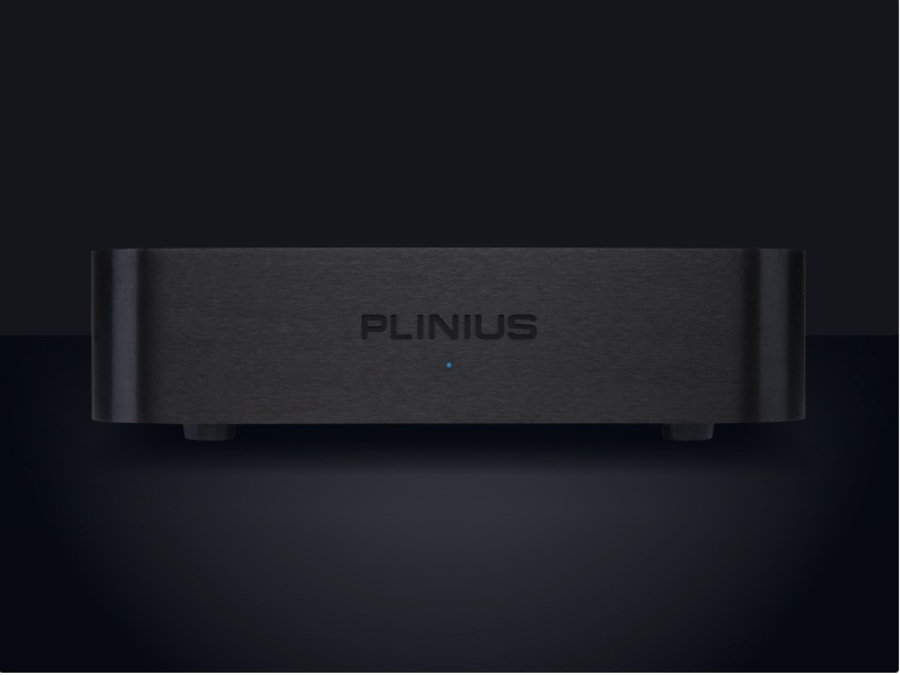

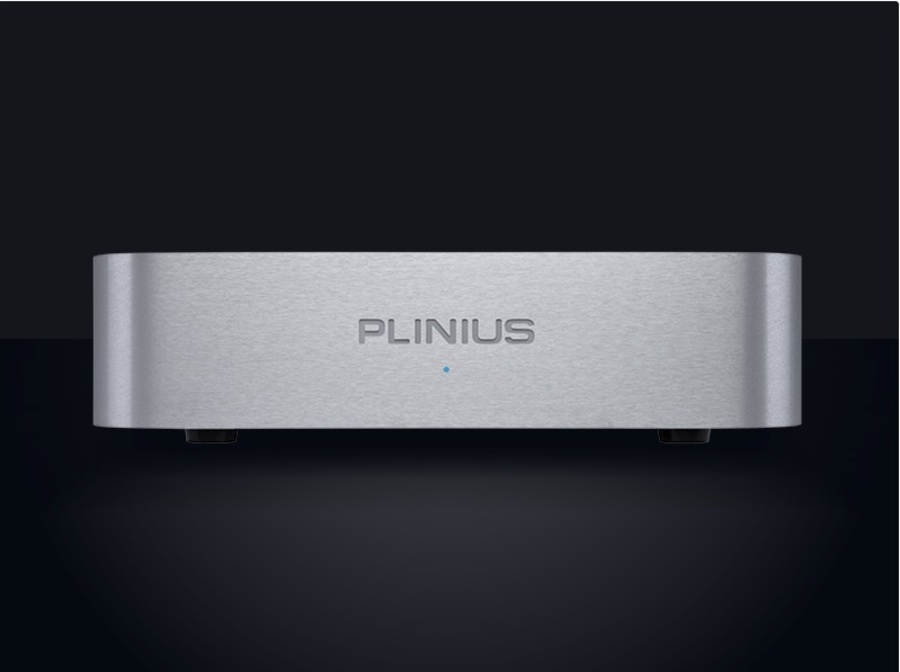

P10 Power Amplifier
The P10 has a level of sophistication rarely found in such a cost effective product. This amplifier has separate input and driver stage power supply regulation and it is an amplifier capable of true high-end performance.

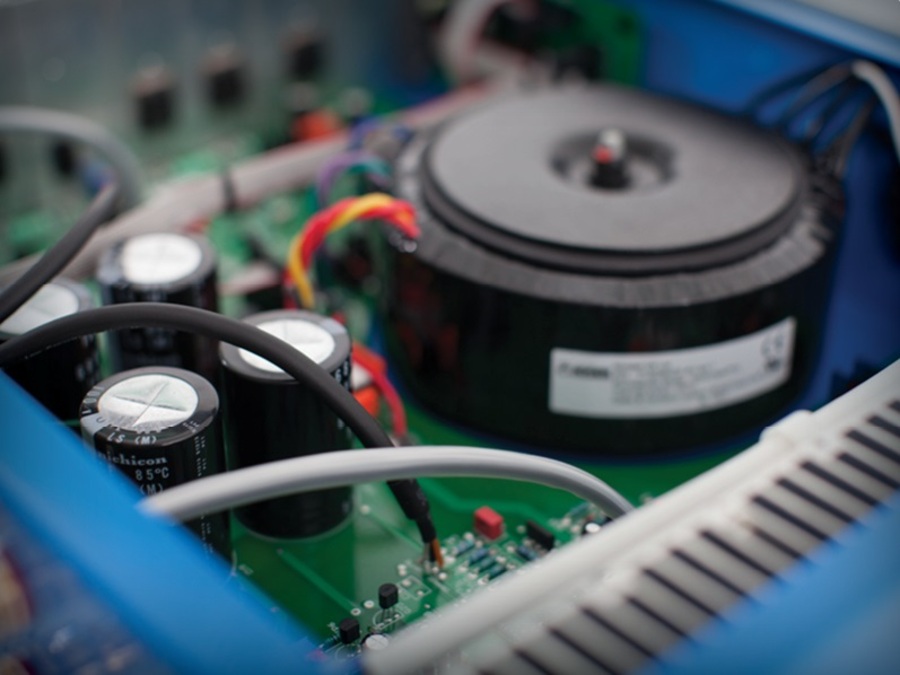

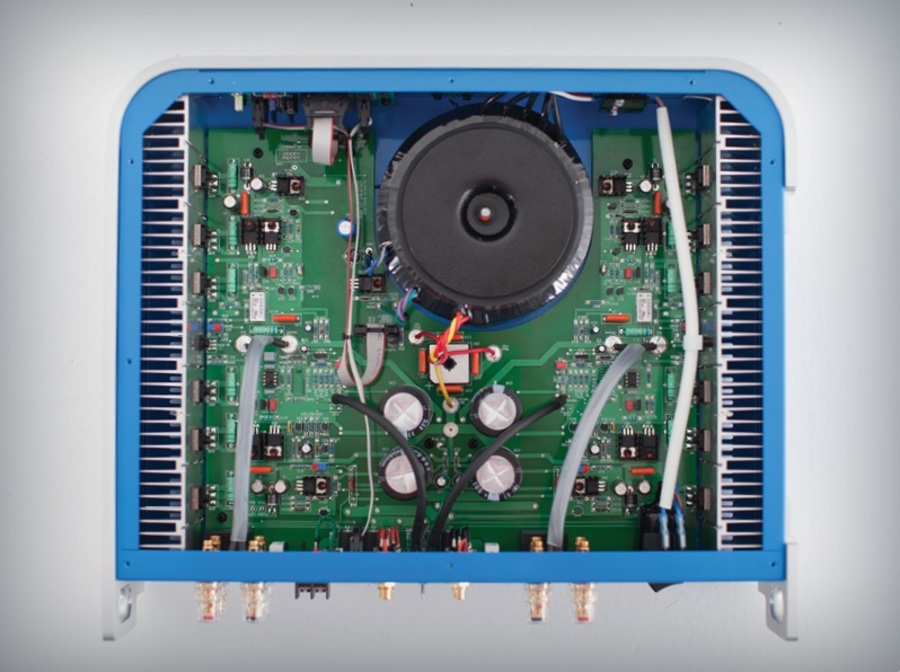

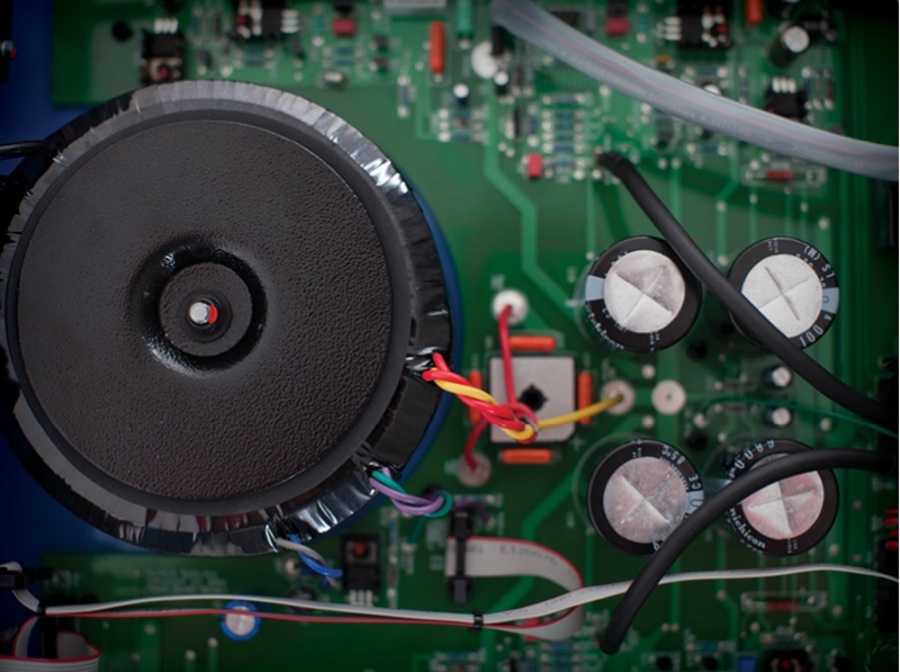

The large toroidal transformer will allow the P10 to deliver power levels in excess of 200 watts per channel into 8 Ohms. Difficult speaker loads are driven with ease to the most satisfying levels, while maintaining control and finesse.
Partnered with the Plinius Kaitaki preamplifier these stable mates will combine to perform at the highest level. The P10 is also highly suited to multiple custom installation use featuring a Home Theatre trigger bypass.
Features
Remote Trigger Input
When connected to a preamplifier trigger output, the amplifier will switch out of Standby and be ready for use when the preamplifier is taken out of standby.
Ground Lift Switch
This allows for the signal ground to be isolated from the main chassis earth. This can assist in resolving unwanted ground loops or hum due to duplicate ground paths in some systems.

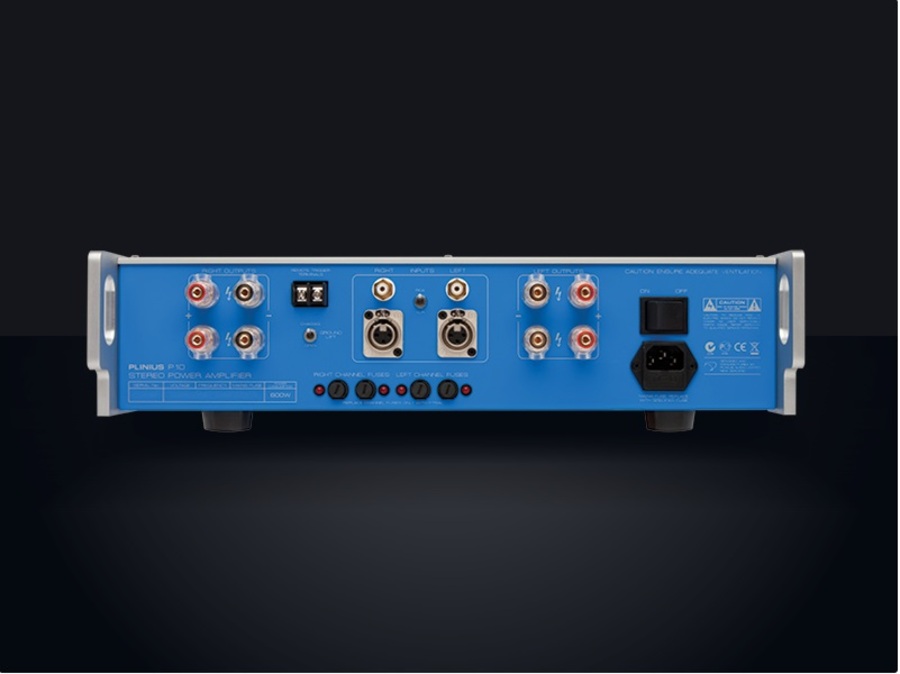

WBT and Neutrik Connectors
High quality WBT RCA and Neutrik XLR input connectors are fitted along with WBT output speaker terminals to ensure a low distortion interface between your cables and the amplifier.
Auric Wiring
Audience AV supply the Auric OFC wire used in the input stage of the amplifier. The Auric was chosen for its high workability and natural sound.
AudioQuest Wiring
AudioQuest X2 is used in the output stage of the amplifier as a high quality link to the speaker connectors.
Specifications
|
POWER |
200 watts RMS per channel into 8 ohms. |
|
FREQUENCY RESPONSE |
20Hz to 20kHz +/–2dB |
|
DISTORTION |
Typically <0.05% THD at rated power |
|
CURRENT OUTPUT |
40A short duration peak per channel |
|
SLEW RATE |
50V/µs |
|
HUM & NOISE |
90dB below rated output 20Hz to 20kHz unweighted |
|
INPUT IMPEDENCE |
47k ohms |
|
GAIN |
RCA Inputs: 32dB |
|
POWER/CURRENT CONSUMPTION |
600W |
|
DIMENSIONS |
Height: 120mm (4 3/4”) |
