VSA-LX805 11.4-CHANNEL AV RECEIVER
The Pioneer VSA-LX805 is the flagship of the LX series and a ground-breaking AV receiver to power a home entertainment system flawlessly. Packed with the most advanced immersive audio technologies & Dirac Live, the Pioneer VSA-LX805 has been meticulously engineered to satisfy every AV need, delivering premium sound and stellar vision to fulfil home entertainment dreams. Dolby® Atmos and Surround technology, IMAX Enhanced, 8K/4K Ultra HD capabilities (and more) elevate any show, games, and films.
Sound. Vision. Soul. Get ready for the ultimate home theater setup with the Pioneer LX VSA-LX805 11.4 Channel Network AV Receiver. Boasting next-gen technology and brimming with studio-grade circuitry, the VSA-LX805 has been engineered to satisfy your every AV need, delivering premium sound and stellar vision to fulfill your home entertainment dreams.
From the pioneers of hi-fi
We’ve spent decades perfecting the ideal acoustic environment, determined to take your home entertainment system into the stratosphere. We’ve spared no expense bringing the VSA-LX805 to market, enhancing on past successes and leveling-up features for the modern age.
 |
 |
|
150 Watts, 11 channels The Pioneer LX VSA-LX805 is engineered to support 11 channels amplified in a 7.2.4 configuration at 150 Watts per channel (8 ohms). Simply put, that’s a lot of power. |

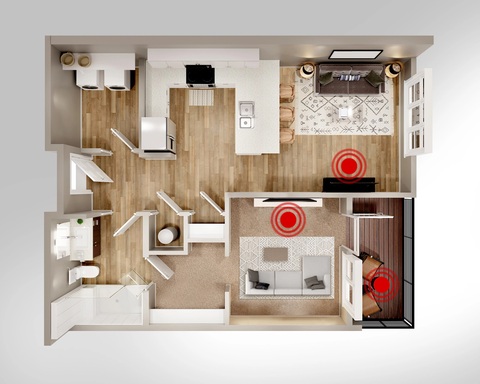

Powering up to three distinct zones That’s enough power to support up to three distinct zones simultaneously. So, you can sit back and relax with your favorite show while the teens are gaming and the kids watch a movie in the other room. |

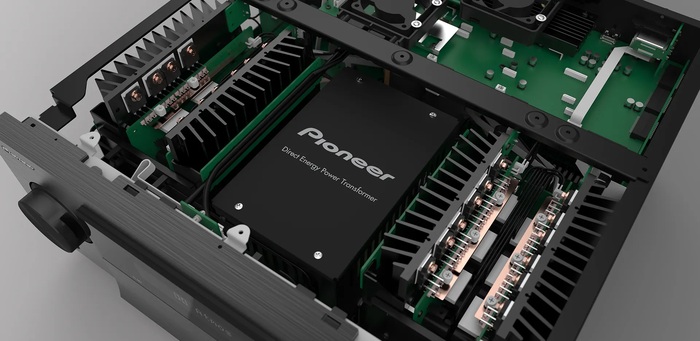

Premium componentry & studio-level processing
Experience movies, music, and games as though you’re in the producers’ booth. With our long-standing commitment to innovation and the hard work of our world-renowned engineers, we’ve delivered yet another ground-breaking AVR.
 |
 |
 |
|
8K/4K Ultra HD capabilities Live up to the potential of your high definition TV. Elevate your shows, games and films to the highest level with exceptional 8K/4K Ultra HD audio-video performance. |
Take the room out of the equation Odd room shape? No problem. An included Dirac Live® premium license comes standard to help account for sound bouncing around any room, and an optional Bass Control upgrade is available for those who can’t get enough precision bass. |

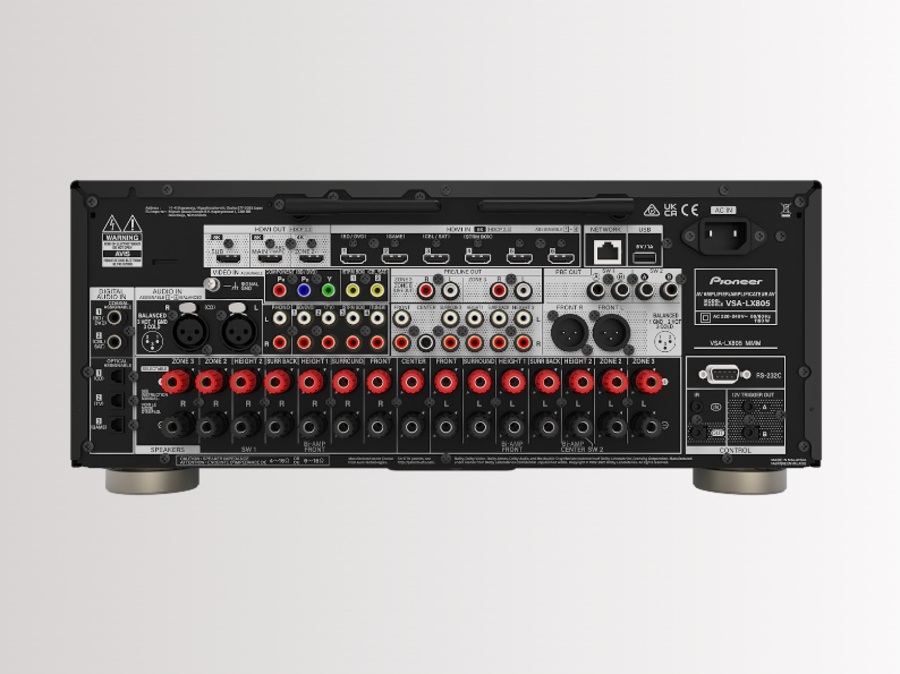

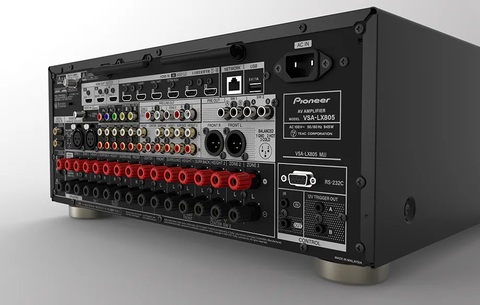

Precision connectivity Transport yourself into the concert hall with precise audio reproduction through hardline cable (HDMI, RCA, Phono, and more) or one of the many streaming and smart home assistant platforms that come standard with this model. |
Multi-dimensional entertainment
Everyone deserves a custom-fit home entertainment solution as personalized and unique as the user. That’s why the Pioneer LX VSA-LX805 comes packed with all the connections you need to enjoy your favorite content.
 |
 |
 |
|
Theater-quality picture Experience powerful 4K HDR images and sound with IMAX® digitally remastered content, just as the filmmaker intended. Pioneer Elite’s IMAX Enhanced Mode is meticulously optimized to play digitally remastered content to deliver the best viewing and listening experience on Earth. |
All Encompassing Sound Just like your choice in content, you’ll never settle for less than exceptional with this AVR. With or without upfiring speakers, E-ARC (Enhanced Audio Return Channel) simplifies connectivity and supports the latest high-bitrate audio formats including Dolby Atmos®, DTS-HD Master Audio™, DTS:X® and Dolby TrueHD. Say hello to lifelike, object-oriented sound in smooth, curving movements or realistic overhead height effects. |
Stream however you like The VSA-LX805 comes with built-in access to several streaming and smart home assistant platforms. Use Apple AirPlay, Google Home, Alexa, TIDAL, Pandora, Roon, Spotify, Amazon, Deezer, Chromecast or Sonos to control and play whatever music you have. With this much access, you'll never run out of music. |
We know audio
The Pioneer LX VSA-LX805 was custom engineered by and for the most sophisticated consumers on the planet.
 |
 |
|

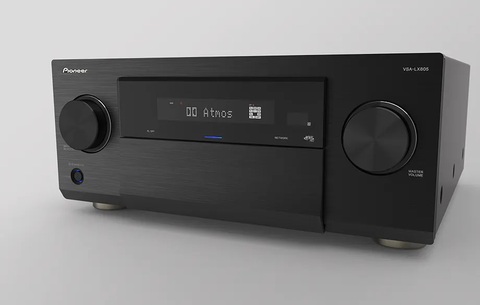

Auto Phase Control Plus & Advanced Sound Retriever tech Auto Phase Control Plus compensates for lag in low-frequency signals while two-channel Advanced Sound Retriever technology restores the output of compressed audio for lossless sound. |
Clearer, stronger audio & reduced digital noise Balanced XLR inputs and outputs deliver clearer, stronger audio reproduction while low impedance polymer capacitors reduce high frequency digital noise for an exacting performance. |
Specifications
Pioneer VSA-LX805 Specifications
Channels
|
7.2.4 (11 amplified) |
Power Output
|
150W x 11 |
(8 ohms, 20 Hz-20kHz, 0.08% THD, 2-ch driven, FTC) |
Amplifier Class
|
Class AB |
all new symmetric design |
Audio Processing
|
Two precision 32-bit ESS ES9026PRO Hyperstream(R) audiophile DACs |
HDMI I/O
|
7 In / 3 Out (eARC) |
HDMI Capabilities
|
8K (inputs 1-6) |
|
|
4K Ultra HD |
|
|
HDMI 2.1 |
|
|
HDCP2.3 |
|
|
Dolby Vision |
|
|
HDR10+ |
Control
|
Ethernet |
|
|
RS232 |
|
|
IR |
|
|
RS232C |
|
|
IR lin/1 out |
Audio Inputs
|
7 HDMI |
|
|
1 XLR |
|
|
4 RCA |
|
|
1 RCA Phono |
|
|
3 Opt |
|
|
2 Coax |
Audio Outputs
|
15 preamp RCA |
|
|
2 preamp XLR |
|
|
Zone 2 Stereo RCA |
|
|
Zone 3 Stereo RCA |
Room Correction
|
Dirac Live Premium Version |
Included |
|
Dirac Live Room Correction Full Bandwidth |
|
|
Dirac Live Bass Control Single/Multi Sub |
Available via user upgrade |
|
MCACC Pro |
Surround Modes
|
Dolby Atmos |
|
|
Dolby Surround |
|
|
DTS:X |
|
|
Neural:X |
|
|
IMAX Enhanced |
|
|
Auro-3D |
(FW update June 2023) |
Streaming
|
Roon Ready |
(FW update September 2023) |
|
Chromecast built-in |
|
|
AirPlay2 |
|
|
Spotify |
|
|
Amazon Music HD |
|
|
Tidal |
|
|
Deezer |
|
|
TuneIn |
|
|
DTS Play-fi |
Sound Improvement Technologies
|
Auto Phase Control Plus |
|
|
Advanced Sound Retriever |
|
|
PQFA (Precision Quartz for File Audio) Jitterless Sound Processing for Network/USB |
