Information
Customisable phono preamplifier effortlessly connects phono to audio systems
The PERREAUX VP3 Phono Preamplifier breathes life into vinyl. This high power, low-noise, audiophile-class Preamplifier effortlessly provides, distortion-free, high-gain signal from your Phono cartridge to your audio amplifier. The VP3 is fully user-customisable and suitable for both Moving Magnet (MM) and Moving Coil (MC) Phono cartridges - with rear panel mounted user configurable dip switches for both resistive and capacitive loading; ensuring a clean, pure signal path from your turntable to audio amplifier. Up to two turntables can be connected to the VP3 at once and switched between. Mono sources are also accommodated. Power and function selection is accessible via front panel touch control or remotely via trigger input. Available in Anodised Silver / Black or custom hand-painted finishes with optional Rack Mounting Kit.
The award winning, PERREAUX VP3 provides the next level in open, low-distortion, high-dynamic turntable Pre-amplification.
Features
If vinyl is your passion, you'll love your new PERREAUX VP3. Built by vinyl lovers - for vinyl lovers, the highly musical PERREAUX VP3 Phono Preamplifier brings your records to life. With separate, fully-customisable, low-noise input stages for both Moving Magnet and Moving Coil cartridges the VP3 provides clean, fully customisable Phono signal from your turntable output to audio amplifier input.
Fully configurable
The VP3 Phono preamplifier incorporates 36 rear-mounted, user-configurable, mechanical dip switches to provide maximum flexibility and versatility allowing precise adjustment of the VP3 to match the gain and loading requirements of the users chosen phono cartridge.
Dual connection
The VP3 Phono preamplifier can accommodate the simultaneous connection of two turntables. One pair of VP3 inputs can be assigned to use a Moving Magnet (MM) or high output Moving Coil cartridge (MC) and the second VP3 input pair can be set up for a low output Moving Coil (MC) cartridge. Possible options are: 1 x Moving Magnet (MM) turntable and 1 x low output Moving Coil (MC) turntable. 1 x High output Moving Coil (MC) turntable and 1 x low output Moving Coil (MC) turntable.

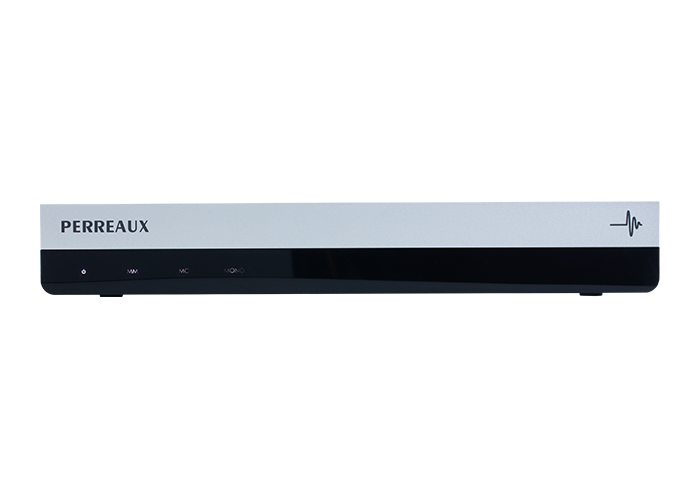

Touch panel control
The VP3 features a unique, stylish, touch-sensitive control panel capable of switching the unit in and out of standby or selection of Moving Coil (MC) / Moving Magnet (MM) or Mono modes.
Compatibility
The VP3 is compatible with both high / low output Moving Coil (MC) and Moving Magnet (MM) phono cartridges.
Normal RIAA or IEC RIAA Equalisation Profiles
User-configurable, rear-mounted mechanical dip switches provide the user with the ability to select between normal RIAA and IEC RIAA equalisation profiles.
Low distortion
The VP3 generates a diminutive Total Harmonic Distortion (THD) figure of only 0.002% at 1KHZ @ rated output, providing a clean, clear and precise reproduction of vinyl recordings.

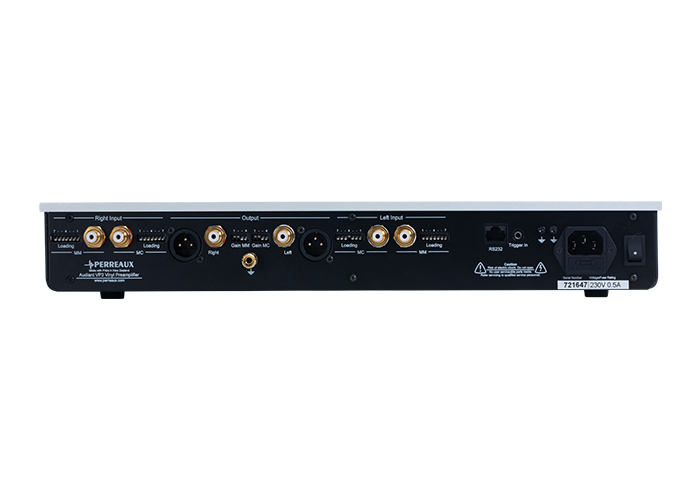

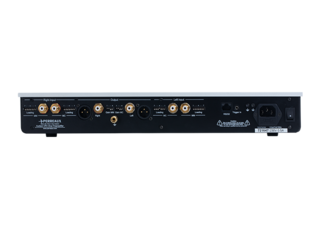

Balanced and unbalanced outputs
The VP3 phono preamplifier features both balanced (XLR) and unbalanced (RCA) analog audio output pairs. Both balanced and unbalanced output pairs can be used simultaneously without interference or degradation in signal performance.
High Power internal power supply
The VP3 features a high power, shielded toroidal transformer with shunt voltage regulation and filtering, providing high levels of transparency, musical detail and dynamics.

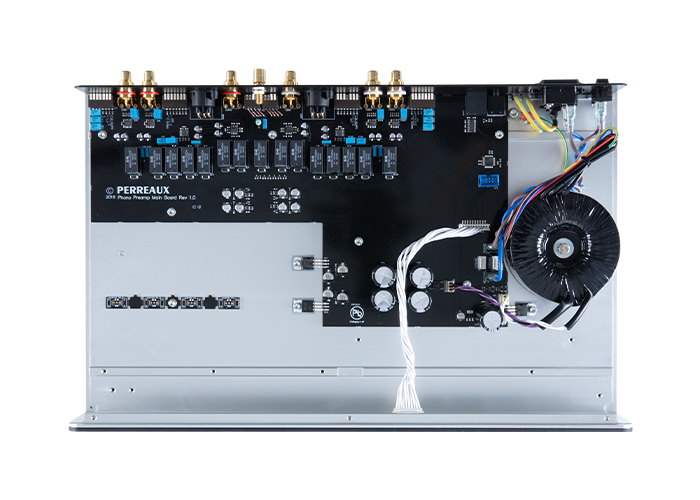

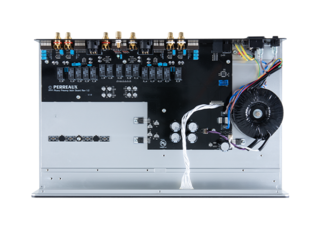

Fully mirrored internal layout
The internal layout has been laid out in full mirror fashion to ensure maximum channel separation and minimal system noise.
Trigger input
The VP3 can be remotely switched in and out of standby using a remote trigger input located on the units rear panel.
Mono capability
The VP3 Phono preamplifier accepts signal from mono recordings, selected from the front mounted touch panel.
Built to last
Mechanical strength, reliability and longevity have always been the hallmarks of PERREAUX’s designs. The VP3 is a rugged, powerful, high performance preamplifier. Buy one for life.
