ML-EMFX2 Disperse - MartinLogan Surround Speakers
|
|
or four payments of $374.75
with
Learn More
Information

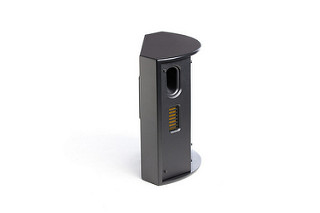

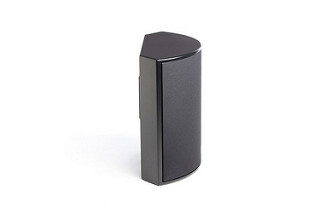

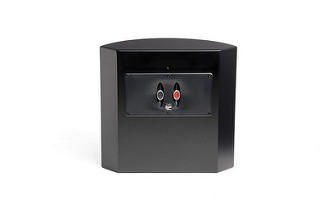

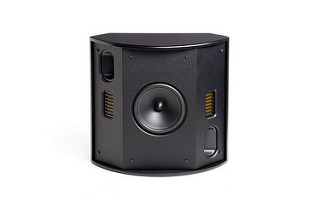

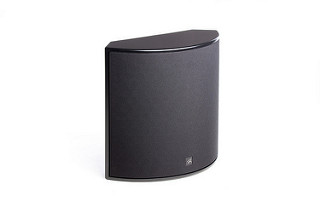

The EM-FX2 features dual Folded Motion XT tweeters in a wide-dispersion array ideally suited for surround channel applications. A single 6.5-inch doped fiber-cone woofer provides powerful low-frequency extension. Available in a black satin finish, the EM-FX2 is designed to corner mount, wall mount or angle-wall mount for versatile surround sound placement in any room.
Folded Motion™ XT Tweeter
MartinLogan's larger, low distortion Folded Motion XT tweeter boasts a radiating surface 40% larger than those found in the award-winning Motion® Series products. This substantial leap in size increases the bandwidth and efficiency of the high-performance tweeter for effortless center channel performance.
Slender Profile
When mounted on a flat wall, the EM-FX2 protrudes only 6.8", making it the perfect surround channel speaker for large rooms, without adding unnecessary bulk or visual distraction.
Specifications
Technical Specifications
 |  |  |  |  |  | |
|---|---|---|---|---|---|---|
| ElectroMotion ESL X | EFX | ElectroMotion ESL | ElectroMotion ESL C | ElectroMotion C2 | ElectroMotion FX2 | |
| Frequency Response | 41–22,000 Hz ±3dB | 68–22,000 Hz ±3dB | 42–22,000 Hz ±3dB | 66–23,000 Hz ±3dB | 55–25,000 Hz ±3dB | 55–25,000 Hz ±3dB |
| Dispersion | 30° x 40" (101.6cm) line source | 30° x 28" (71cm) line source | 30° x 34" (71cm) line source | 30° x 6.375" (16cm) line source | 80° x 30° | 160° x 30° |
| Sensitivity | 91 dB/2.83 volts/meter | 90 dB/2.83 volts/meter | 91 dB/2.83 volts/meter | 89 dB/2.83 volts/meter | 94 dB @ 2.83 volts/ meter | 93 dB @ 2.83 volts/ meter |
| Nominal Impedance | 6 Ohms, 1.6 @ 20kHz. Compatible with 4, 6 or 8 ohm rated amplifiers. | 6 Ohms, 1.3 @ 20kHz. Compatible with 4, 6 or 8 ohm rated amplifiers. | 6 Ohms, 1.6 @ 20kHz. Compatible with 4, 6 or 8 ohm rated amplifiers. | 4 Ohms. Compatible with 4, 6 or 8 ohm rated amplifiers. | 4 Ohms. Compatible with 4, 6 or 8 ohm rated amplifiers. | 5 Ohms. Compatible with 4, 6 or 8 ohm rated amplifiers. |
| Recommended Amplifier Power | 20-400 watts per channel | 20-300 watts per channel | 20-300 watts per channel | 20-300 watts per channel | 20-250 watts per channel | 20-200 watts per channel |
| Crossover Frequency | 400Hz | 530Hz | 500Hz | 600, 3400 Hz | 900, 2,300 Hz | 2,300Hz |
| High Frequency Transducer | XStat™ CLS™ electrostaic transducer | XStat™ CLS™ electrostaic transducer | XStat™ CLS™ electrostaic transducer | One 1" x 1.4" (2.6cm x 3.6cm) Folded Motion Transducer with 5.25" x 1.75" (13.3cm x 4.4cm) diaphragm. | One 1.25" × 2.4" (3.2cm × 6.1cm) Folded Motion XT Transducer with 4.5" × 2.75" (11.4cm × 7cm) diaphragm | Two 1.25" × 2.4" (3.2cm × 6.1cm) Folded Motion XT Transducers with 4.5" × 2.75" (11.4cm × 7cm) diaphragm |
| » Panel Dimensions (HxW) | 40" x 8.6" (102cm x 22cm) |
28" x 8.6" (71cm x 22cm) |
34" x 8.6" (86cm x 22cm) |
— | — | — |
| » Radiating Area | 344 in2 ( cm2) |
241 in2 ( cm2) |
292 in2 ( cm2) |
— | — | — |
| Mid Frequency Transducer | — | — | — | XStat™ CLS™ electrostaic transducer | — | — |
| » Panel Dimensions (HxW) | — | — | — | 6.375" x 23" (16cm x 58cm) |
— | — |
| » Radiating Area | — | — | — | 147 in2 ( cm2) |
— | — |
| Low Frequency Driver | Two 8” (20.3 cm) high excursion, high-rigidity paper cones with extended throw driver assembly, non-resonance asymmetrical chamber format, bass reflex | 6.5" (16.5cm) high excursion, fiber cone with extended throw drive assembly; bass reflex | 8" (20.3cm) high excursion, high-rigidity paper cone with extended throw drive assembly, non-resonance asymmetrical chamber format; bass reflex | Two 5.25" (13.3 cm) high excursion, high-rigidity aluminum cone with extended throw driver assembly, non-resonance asymmetrical chamber format. | Two 5.25" (13.3cm) paper cone with cast aluminum basket. Ported. | 6.5" (16.5cm) paper cone with cast aluminum basket. Ported. |
| Weight | 52lbs. (23.6kg) each | 24.5lbs. (11.1kg) each | 35.5lbs. (16.1kg) each | 32lbs. (14.5kg) each | 24.5lbs. (11.12kg) each | 16lbs. (7.3kg) each |
| Overall Dimensions (HxWxD) |
59.2 x 9.4 x 20.7 (150.3cm x 23.8cm x 52.6cm) | 48.8 x 9.4 x 6.5 (123.9cm x 23.8cm x 16.5cm) | 52.1 x 9 x 16.3 (132.3cm x 22.9cm x 41.4cm) | 7.6 x 22.8 x 16.1 (19.3cm x 57.9cm x 40.9cm) | 6.4 x 18.9 x 14.3 (16.4cm x 48.2cm x 36.5cm) | 14.9 x 14 x 6.8 (37.9cm x 35.5cm x 17.2cm) |
