ML-MOFX MartinLogan Surround Wide-disper - MartinLogan Surround Speakers

ML-MOFX MartinLogan Surround Wide-disper
  • ML-MOFX MartinLogan Surround Wide-disper
ML-MOFX MartinLogan Surround Wide-disper
Price:
NZ$ 998.99 including GST

NZ$ 868.69 excluding GST


or four payments of $249.75 with
Afterpay Payment Offer Learn More

ML-MOFX
Rating:
( 0 reviews )
Purchase Qty:



Dedicated wide dispersion surround speaker with dual Folder Motion tweeters and Folder Motion Cascading Bass-Reflex Port for deep, detailed bass response. Voice-matched with MartinLogan ESL speakers.

Engineering Genius

What makes the Motion Series sound so amazing? MartinLogan's dedicated in-house engineering team started by utilizing and refining the most advanced, compact technologies and combining them with innovative engineering. The result is an emotionally engaging sound that rivals (and most times trounces) traditional loudspeakers of similar size and price.

Folded Motion® Tweeters

The signature Folded Motion tweeters utilize extremely low mass diaphragms that "squeeze" air, and require significantly less excursion than the typical 1-inch dome tweeter, which drastically minimizes distortion while providing a lightning fast response time. The increased surface area also provides a wide, yet controlled sound dispersion to create a realistic and carefully etched sound stage.

Specifications

Specifications are subject to change without notice

Frequency Response

70–25,000 Hz ±3dB

Recommended Amplifier Power

20—160 watts per channel

Horizontal Dispersion

160°

Vertical Dispersion

80°

Sensitivity

91 dB/2.83 volts/meter

Impedance

4 Ohms Compatible with 4, 6, or 8 Ohm rated amplifiers.

Crossover Frequency

4500 Hz

High Frequency Transducer

Two 1" × 1.4" (2.6cm × 3.6cm) Folded Motion Transducer with 5.25" × 1.75" (13.3cm × 4.4cm) diaphragm

Low Frequency Transducer

5.25" (13.3cm) paper cone with cast aluminum basket. Non-resonant asymmetrical chamber format. Rigid structured dust cap to reduce cone break-up modes. Folded bass reflex port.

Components

Custom air core coil inductors. Polyester film capacitors in series and low DF electrolytic capacitors in parallel. Overall system thermal/current protection.

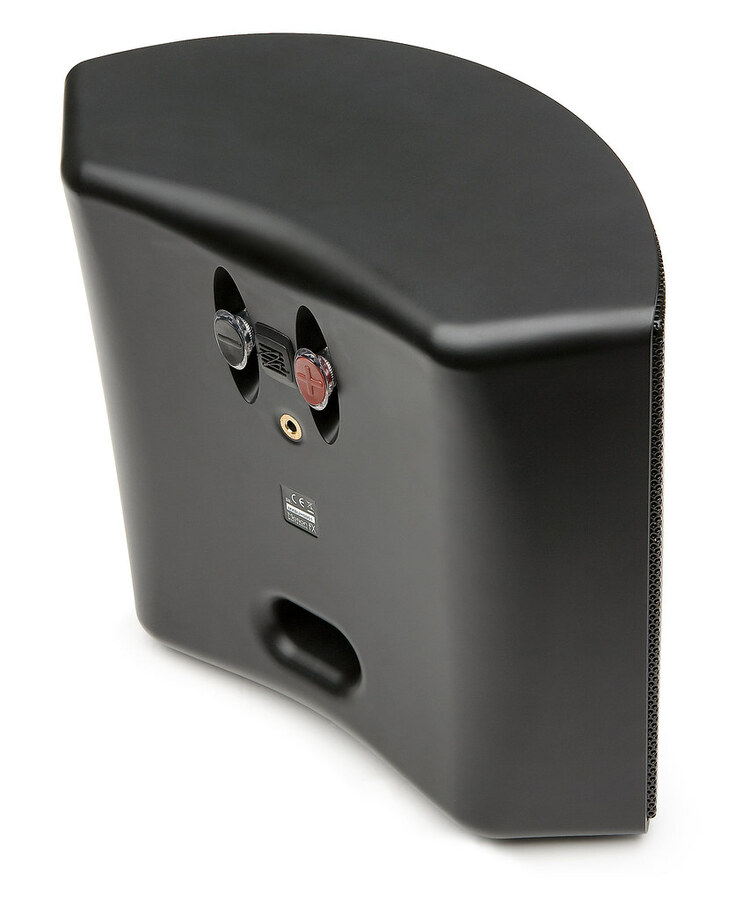

Inputs

Push style with banana jacks

Weight

9.5 lbs. (4.4 kg)

Dimensions

11.1" x 12" x 6 "
(28.2cm x 30.5cm x 15.2cm)
