Perlisten D15S Subwoofer
The Perlisten D15S Subwoofer has a Small footprint, big sound. Benefiting from many of the technologies of the Perlisten flagship subs, these sealed subs generate amazing performance in the smallest footprint. Low Q, shallow roll-off response geared for sound quality and smoothly integrating into the listening room.
Also, a great choice for using multiple subs to optimize in room response and smooth out seat-to-seat variation. The Perlisten D15S Subwoofer is the smallest single sub certified THX Dominus available on earth. Powerd by Perlisten’s 2.0kW amplifier, all functions and safeties are controlled by a 48-bit data bath DSP and 32-bit ARM M4 Cortex processor, able to react in microseconds, powerful enough to slam.
Ground up drivers developed by their team of engineers. Carbon fiber composite diaphragms, multiple aluminum shorting rings, massive magnets, multi-layer Nomex spiders and lightweight aluminum voice coil wire are the key ingredients – Proprietary nonlinear modeling techniques allow them to simulate all these components and then optimize for real world driver performance – free air and in box.
Further refinement is done with the aid of Klippel laser measurements to dial things in.
The Perlisten D15S Subwoofer shares the 2.4” LCD touchscreen display and ability to control advance settings using the Perlisten App.
Features
THX CERTIFIED LOUDSPEAKERS
With home theater, sound is everything. Crisp clean audio drives the emotional depth, texture and immediacy envisioned by the artist. THX Certified Loudspeakers pass hundreds of lab tests to guarantee precisely this level of performance every time.
Specifications
Alignment | Acoustic suspension |
Amplifier | 2.0kW rms short term |
Display Interface | 2.4″ LCD color touchscreen |
App | iOS and Android |
Processor | 32-bit ARM Cortex M4, double precision floating point math |
DSP Engine | Ti DSP 48-bit data paths |
Driver compliment | 380mm, Carbon fiber diaprhragm +/-30mm linear excursion |
Reference sensitivity | 92dB / 150mV/ 1.0m |
Frequency Response THX EQ Boost (Large Room) EQ Cut (Small Room) EQ |
20-320Hz (-6dB) / 16-395Hz (-10dB) 16-320Hz (-6dB) / 14-395Hz (-10dB) 24-320Hz (-6dB) / 18-395Hz (-10dB) |

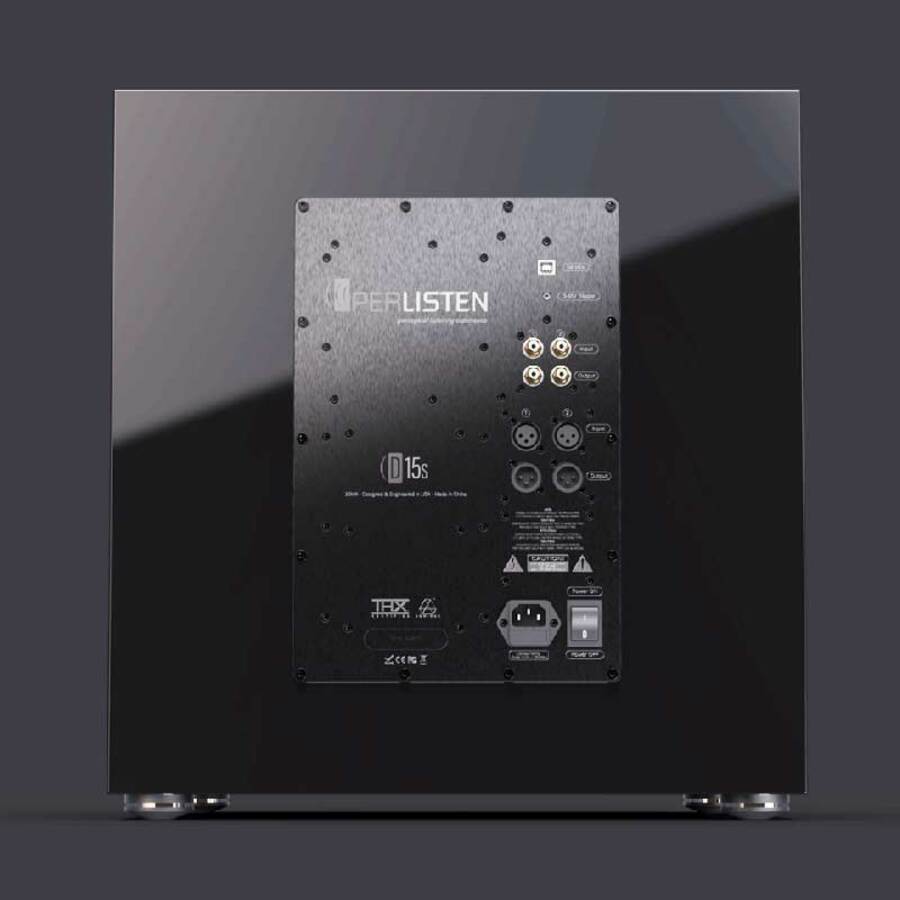

Inputs | (2) Balanced XLR (2) Unbalanced RCA |
Outputs | (2) Balanced XLR unbuffered (2) Unbalanced RCA unbuffered |
Parametric EQ | 10-Band PEQ with 3 user presets |
Low Pass filter | Bypass, 30-160Hz, slope 6,12,18,24dB/oct |
Phase | Variable 0-270° |
Polarity | Normal / inverted |
Configurable Auto turn-on and 12v Trigger | XLR 1, XLR 1+2, RCA 1, RCA 1+2 |
Dimensions (HxWxD) | 528 x 500 x 500mm 20.8 x 19.7 x 19.7″ |
Weight | 46.0 kg (101.2 lbs.) |
Certification | THX Dominus |
Available finishes | Piano black |
