DS Audio Solid Head Shell - DS Audio Accessories

DS Audio Solid Head Shell
  • DS Audio Solid Head Shell
DS Audio Solid Head Shell
Price:
NZ$ 895.00 including GST

NZ$ 778.26 excluding GST


or four payments of $223.75 with
Afterpay Payment Offer Learn More

HS-001
Rating:
( 0 reviews )
Purchase Qty:



HS-001 Solid head shell

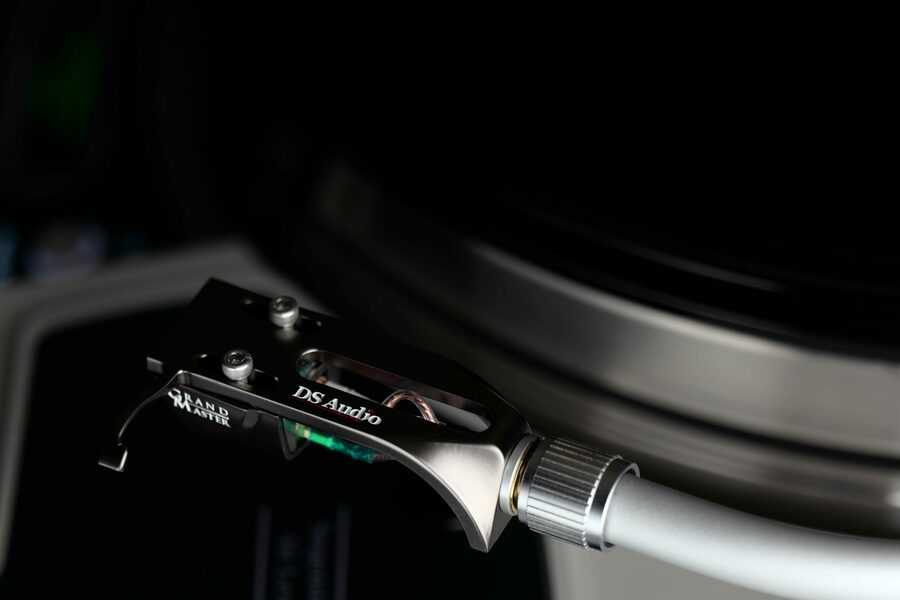

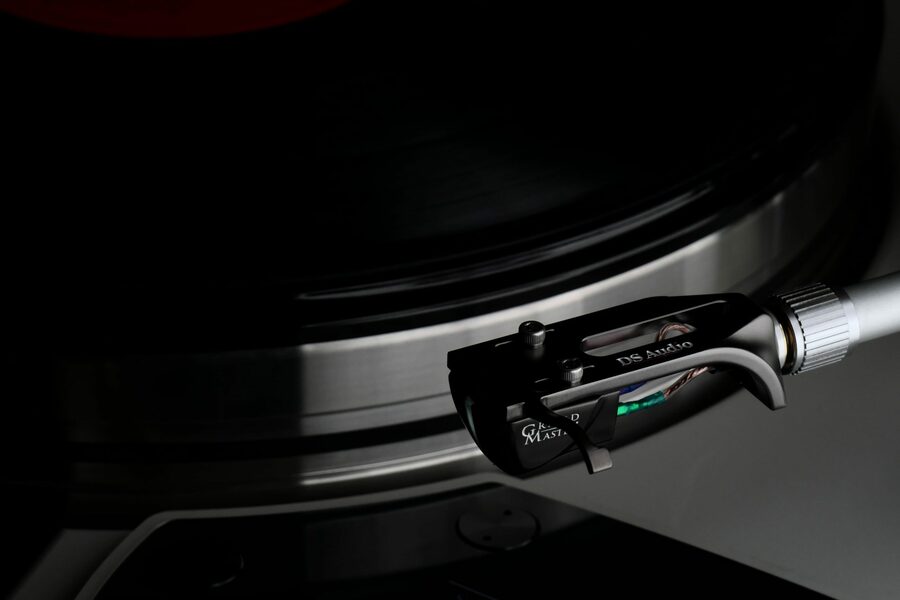

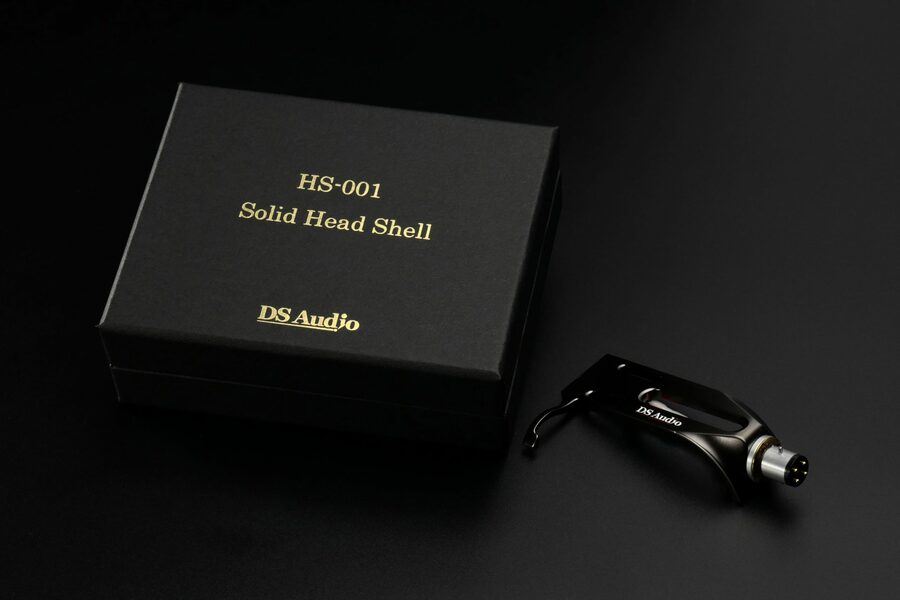

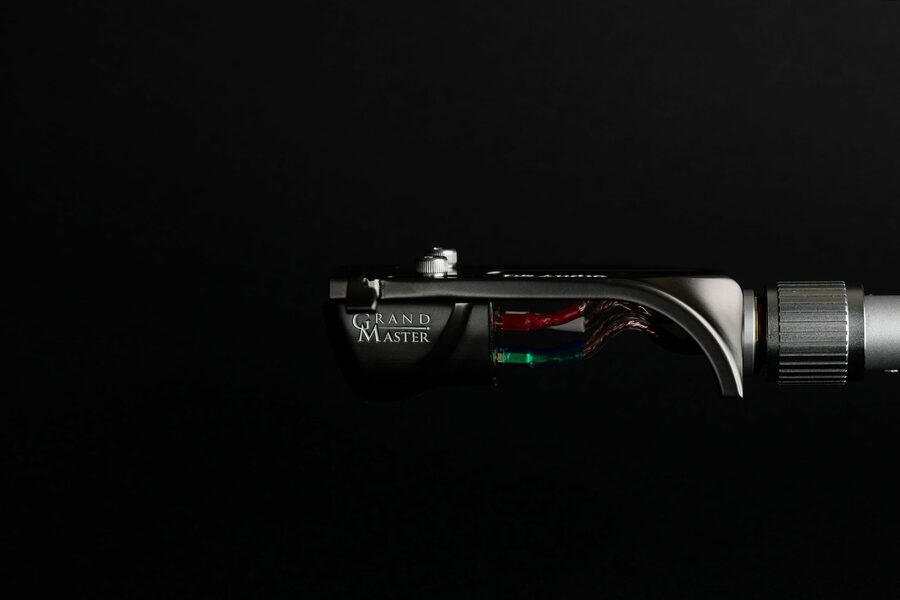

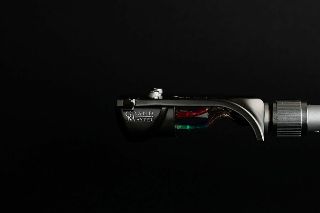

DS Audio HS-001 claim the best sounding head shell in the world -  How? By reducing the number of contacts with the connector, making the contact with the tone arm more solid, and increasing the strength of the head shell body.

Vertical pin structure achieves uniform pressure of electrical contacts.
Contact surface stabilized by spherical washer

Conventional head shells have the connecting pin attached only to the upper side, causing uneven contact pressure between the arm and the head shell.

However, the HS-001 Solid Head Shell adopts both an upper and lower pin structure, equalizing the pressure on the contacts and applying force evenly across the connection to the tonearm.

Moreover, by using the spherical head shell washer developed by DS Audio independently at the contact point with the tonearm, stable contact is achieved over the entire circumference of the contact point, providing improved stability and resonance control.

Machined Ultra Duraluminum

DS Audio precision machines each HS-001 out of a solid billet of duralumin for the ultimate in rigidity and resonance control.

Hand soldered Litz signal leads

After extensive listening tests within the company, DS Audio chose a Japanese made Litz wire. Further advances were realized by hand soldering this delicate lead wire to preserve signal integrity for the optimal in sound performance. (Lead wires and connector parts are available unsoldered as well, by dealer request.)

HS-001 Solid head shell
Material
Ultra duralumin
Connector part
Aluminum
Connector terminal
Gold plating
Connector terminal
Gold plating
External dimensions
H21 × W40 × D55 mm (excluding connector part and protrusion part)
Weight approx
10.5 g (excluding shell lead wire)
Shell lead wire
Litz wire 4N φ 0.08 x 10 x 3 yore rings
Screw
Stainless steel bolt
M2.6 L8×2, M2.6 L12×2
