Atoll AV100 100 Watt 3 Channel Power Amplifier
  • Atoll AV100 100 Watt 3 Channel Power Amplifier
Atoll AV100 100 Watt 3 Channel Power Amplifier
Price:
NZ$ 2,295.00 including GST

NZ$ 1,995.65 excluding GST
AV100
Rating:
☆ ☆ ☆ ☆ ☆ ( 0 reviews )
Colour:
  • Black
  • Silver
Do you need a 12V Trigger Input:
Purchase Qty:



AV100

The AV100 home cinema power amplifier is a 3-channel model developing up to 100 watts per channel at 8 ohms. Equipped with high quality electronic components, this amplifier will be advantageously associated with an integrated home cinema amplifier with pre-out outputs, in order to amplify the front channels. This very musical amp, combining power and finesse, allows the listener to dive into the heart of the action.

  • Front panel in 4mm brushed aluminum.
  • 1.5mm steel chassis.
  • Power 3×100 W – 8 Ω.
  • 2 toroidal transformers of 340 VA each.
  • Total capacitance: 44,210 µF.
  • Symmetrical stages with discrete components.
  • Output transistors with MOS-FET technology.
  • Optional natural aluminum finish.
  • Possibility of integrating an optional 12V Trigger input.

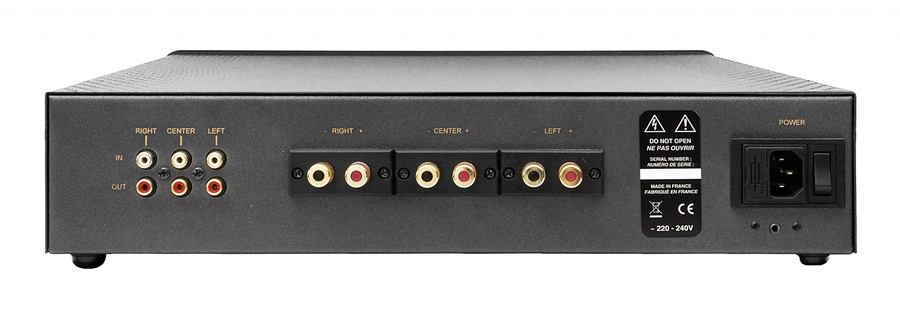

 CONNECTIVITY

Inputs

  • 3 Signal inputs (right, center and left channels).
  • 1 Trigger input (1) (optional).

Outputs

  • 3 Signal outputs (right, center and left channels).
  • 1 Right speaker output.
  • 1 Central channel output.
  • 1 Left speaker output.



Power Wrms/ 8Ω  : 3×100 W

Power Wrms/ 4Ω  : 3×140 W

Pulse  power  : 180 W/channel

Power supply : 2×340 VA

Total capacitance  : 44,210 µF

Number of inputs  : 3

Input impedance  : 47 kΩ

Sensitivity  : 1.77 V

Signal/Noise Ratio  : 100 dB

Distortion at 1 kHz  : 0.05% / (10 W)

Bandwidth  : 5 Hz – 200 kHz

Rise time  : 1.3 µs

Dimensions  : 440×291×95 mm

Weight  : 11 kg
